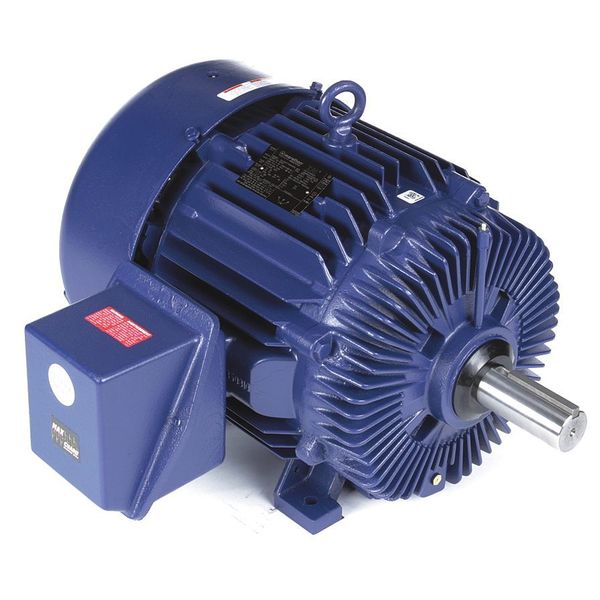

3-Phase Severe Duty Motor, 25 HP, 324T Frame, 460V AC Voltage, 1,184 Nameplate RPM

SKU
Brand Marathon Motors
Categories
Description Severe Duty Motor, Three Phase, Motor Design 3-Phase, 25 HP, Nameplate RPM 1,184, No. of Speeds 1, Voltage 460V AC, Full Load Amps 32 A, 324T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Max. Ambient Temp. 104 Degrees F, Motor Service Factor 1.15, Ins. Class H, Hazardous Location Class 1 A,B,C,D, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
graingerSKU: 19RX90, mscSKU: , zoro_no: G9943622, mongo_id: 65bbee1c526e052139aeeaf8

Web Price

$6,264.99 / each

Product Details

CC Number CC003A

Conduit Box Location Exterior

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 324T

Frame Material Cast Iron

Full Load Amps 32 A

Green Certification or Other Recognition NEMA Premium(R) Rated

Hazardous Location Class 1 A,B,C,D

Hazardous Location Division Division 2

HP_ 25

Hz_ 60 Hz

Includes Max Guard Insulation, Shaft Key

Ins. Class H

Inverter Rated Yes

Lead Length 3 in

Length Less Shaft 24 9/16 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 104 Degrees F

Motor Application Hazardous Location

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 1,184

NEMA Design B

No. of Speeds 1

Nominal Efficiency 93 %

Overall Length 29 13/16 in

Package Quantity 1

Phase Three

RPM Group 1101-1200

RPM Range 1,101-1,200

Shaft Dia. 2 1/8 in

Shaft Length 5 1/4 in

Standards CE, CSA, UL Listed

Temp. Code T2B

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 3,198 lb
