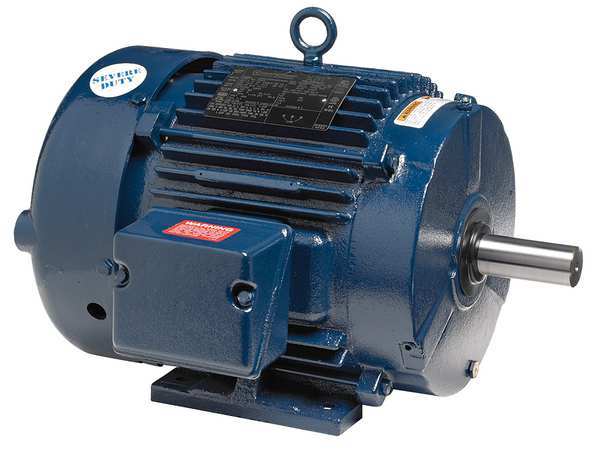

3-Phase Severe Duty Motor, 40 HP, 324T Frame, 460V AC Voltage, 1,782 Nameplate RPM

SKU
Brand Marathon Motors
Categories
Description Severe Duty Motor, Three Phase, Motor Design 3-Phase, 40 hp HP, Nameplate RPM 1,782, No. of Speeds 1, Voltage 460V AC, Full Load Amps 47.5 A, 324T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class H, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
graingerSKU: 19RX88, mscSKU: , zoro_no: G9943647, mongo_id: 65bbe7d03aaddbd5a90ba54d

Web Price

$5,681.24 / each

Product Details

CC Number CC003A

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 324T

Frame Material Cast Iron

Full Load Amps 47.5 A

Green Certification or Other Recognition NEMA Premium(R) Rated

Hazardous Location Class 1 C,D / 2 F,G

HP_ 40 hp

Hz_ 60 Hz

Includes Max Guard Insulation

Ins. Class H

Inverter Rated Yes

Lead Length 3 to 8

Length Less Shaft 24 7/8 in

Max. Ambient Temp. 104 Degrees F

Motor Application General Application

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 1,782

NEMA Design B

No. of Speeds 1

Nominal Efficiency 95.4 %

Overall Length 30 3/8 in

Package Quantity 1

Phase Three

RPM Group 1701-1800

RPM Range 1,701-1,800

Shaft Dia. 2 1/8 in

Shaft Length 5 1/2 in

Standards CE, CSA, UL Listed

Temp. Code T2B

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 702 lb
