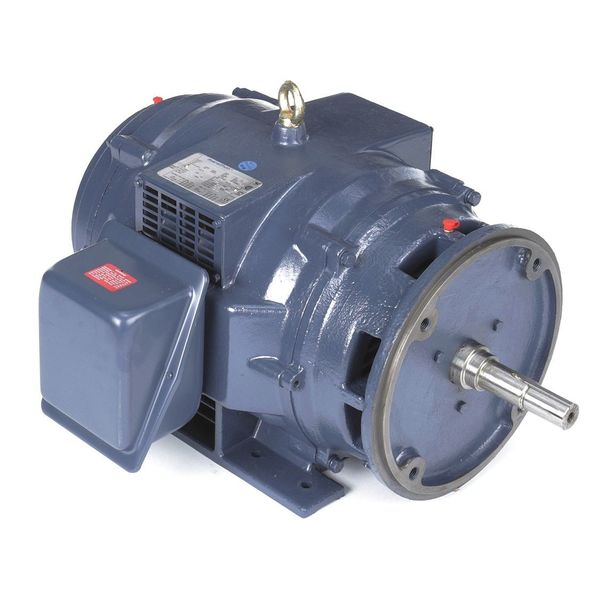

Close-Coupled Pump Motor, 40 HP

Close-Coupled Pump Motor, 40 HP

  • Marathon Motors
  • Pumps
  • Close-Coupled Pump Motor, Bolt Circle Dia. 11 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 286JM, Hz 60, Full Load Amps 93.0/46.5, Height 15 in, HP 40 hp, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 21 13/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
Web Price
$4,453.74 / each
Qty

Product Details

11 in
CC003A
Exterior
F1, F2
Mexico
Continuous
Continuous
286JM
Cast Iron
93.0/46.5
NEMA Premium(R) Rated
15 in
40 hp
60
F
Yes
10:1 Variable Torque, 2:1 Constant Torque
21 13/16 in
40 Degrees C
Pump
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Steel
Horizontal
Face/Base
1.15
JM Threaded
CW/CCW
Close-Coupled Pump
None
3,560
B
1
92.4 %
27 1/16 in
1
Three
3,001-3,600
1 1/4 in
5 1/4 in
CE Mark, CSA Certified, UL Recognized
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
465 lb
