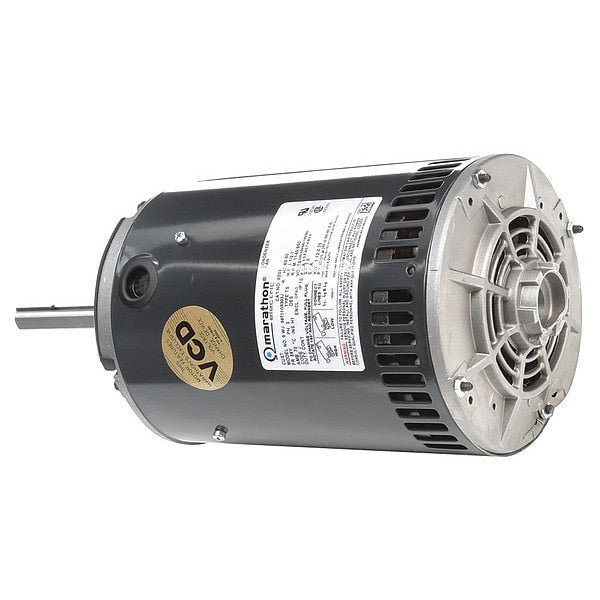

Condenser Fan Motor, 1-1/2 HP, 56Y Frame

Condenser Fan Motor, 1-1/2 HP, 56Y Frame

  • Marathon Motors
  • Condenser Fan Motor, Three Phase, Motor Design 3-Phase, 1 1/2 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 200-230/460V AC, 5.5-5.4/2.7 Full Load Amps, 56Y Frame, Output Watts 1100 W, 60/50 Hz, Usable @ 208V Yes, Usable @ 200V Yes, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class H, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band/Stud, Motor Frame Material Steel

    graingerSKU: 490T64, mscSKU: , zoro_no: G7257140, mongo_id: 65bbe94a22d7a989a9946b40

Web Price
$531.24 / each
Qty

Product Details

Condenser Fan
6 1/2 in
No
Exterior
F1
Mexico
Continuous
Continuous
(4) Locating Screws 90 Degrees Apart, 3 5/16 in From Outer Edge of Shaft Slinger, Voltage Change Device for Quick Voltage Changes
56Y
5.5-5.4/2.7
5.5-5.4/2.7
1-1/2
1 1/2
60/50
H
11 1/16 in
1 yr
70 Degrees C
HVAC/R
Ball
3-Phase
Open Air-Over
Steel
Horizontal or Vertical Shaft Up
Band/Stud
1
Keyed with Single Flat
CW/CCW
Condenser Fan
Auto
1,140
1
78.5 %
1100 W
16 1/16 in
1
Three
No
1,140
1,001-1,100
1
5/8 in
5 in
CSA Certified (LR2025), UL Recognized
Yes
Yes
200-230/460V AC
200-230/460V AC
200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
35 lb
