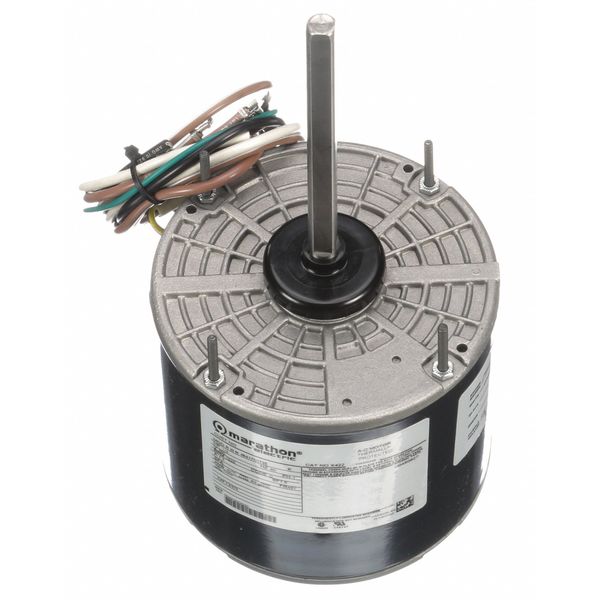

Condenser Fan Motor, 1/2 HP, 1625 rpm, 60Hz

SKU
Brand Marathon Motors
Categories
Description Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,625, No. of Speeds 1, Voltage 460V AC, 1.70 Full Load Amps, 48Y Frame, Output Watts 370 W, 60 Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel
graingerSKU: 45CF18, mscSKU: , zoro_no: G2034761, mongo_id: 65bbe8fd22d7a989a992a0da

Web Price

$379.99 / each

Qty

Product Details

Application General Purpose

Body Dia. 5 11/16 in

Bolt Circle Dia. 1 1/4 in

Capacitor Required 2MDV6

Conduit Box Location Exterior

Conduit Box Position F1

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Extended Thru-Bolts Yes

Features Shaft Slinger, Shaft With Flat, Thru Bolt, Weather Resistant Reversing Plug

Frame 48Y

Full Load Amps 1.70

HP_ 1/2

Hz_ 60

Ins. Class B

Lead Length 30 in

Length Less Shaft 5 15/16 in

Max. Ambient Temp. 40 Degrees C

Motor Application HVAC/R

Motor Bearings Ball

Motor Design Permanent Split Capacitor

Motor Enclosure Design Open Air-Over

Motor Frame Material Steel

Motor Mounting Position Horizontal or Vertical Shaft Up

Motor Mounting Type Stud

Motor Service Factor 1

Motor Shaft Design Flat

Motor Shaft Rotation CW/CCW

Motor Sub Application Condenser Fan

Motor Thermal Protection Auto

Mounting Stud Pattern 3 5/8 in x 3 5/8 in

Nameplate RPM 1,625

No. of Speeds 1

Nominal Efficiency 64 %

Output Watts 370 W

Overall Length 11 15/16 in

Package Quantity 1

Phase Single

Removable Base No

RPM Range 1,501-1,600

Shaft Dia. 1/2 in

Shaft Length 6 in

Standards CSA Certified, UL Recognized

Stud Quantity 4

Stud Size #8-32

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 15 lb
