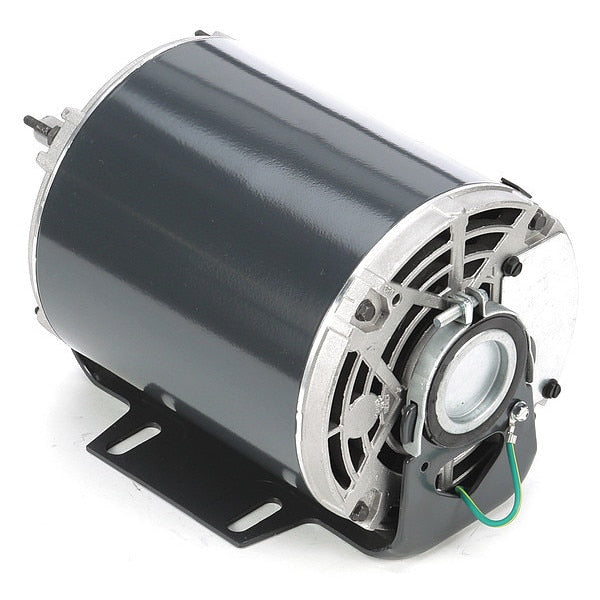

Condenser Fan Motor, 1/3 HP, 48Z Frame

SKU
Brand Marathon Motors
Categories
Description Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230V AC, 3.3 Full Load Amps, 48Z Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
graingerSKU: 490T82, mscSKU: , zoro_no: G7345453, mongo_id: 65bbe7753aaddbd5a90964c8

Web Price

$248.74 / each

Qty

Product Details

Application Fan/Blower

Body Dia. 5 5/8 in

Bolt Circle Dia. 5-1/8

Capacitor Required No

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 48Z

Full Load Amps 3.3

HP_ 1/3

Hz_ 60

Ins. Class B

Length Less Shaft 8 1/16 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 104 Degrees F

Motor Application HVAC/R

Motor Bearings Ball

Motor Design Split-Phase

Motor Enclosure Design Open Dripproof

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Cradle Base

Motor Service Factor 1.35

Motor Shaft Design Flat

Motor Shaft Rotation CW/CCW

Motor Sub Application Belt Drive Fan/Blower

Motor Thermal Protection Auto

Mounting Stud Pattern 3-5/8 in x 3-5/8 in

Nameplate RPM 1,725

No. of Speeds 1

Nominal Efficiency 58.7 %

Overall Length 9 15/16 in

Package Quantity 1

Phase Single

Resilient Ring Dia. 2 1/4 in

Ring to Ring Center 7 11/16 in

RPM Range 1,701-1,800

Shaft Dia. 1/2 in

Shaft Length 1 3/4 in

Standards CE, CSA (MC236833), UL (E14133)

Stud Quantity 4

Stud Size #8-32

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 16 lb
