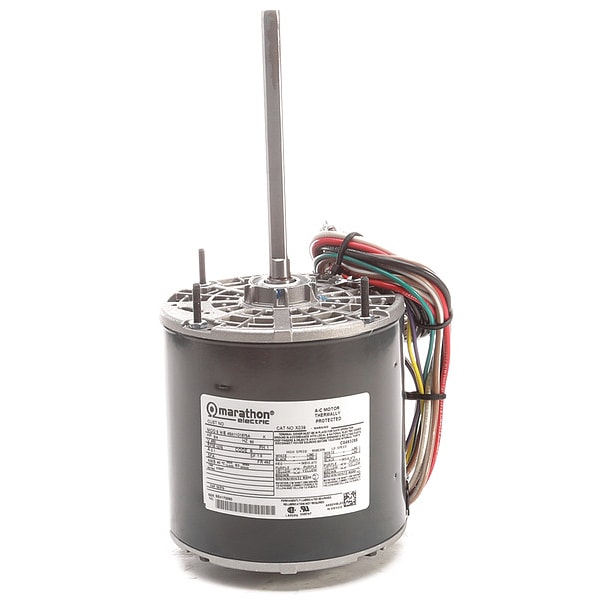

Condenser Fan Motor, 3/4 HP, 48Z Frame

SKU
Brand Marathon Motors
Categories
Description Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 HP, Nameplate RPM 1,075, No. of Speeds 2, Voltage 460V AC, Full Load Amps 2.1 A, 48Z Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 27 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position Horizontal
graingerSKU: 490T88, mscSKU: , zoro_no: G7256057, mongo_id: 65bbe6c23aaddbd5a904eb8a

Web Price

$358.74 / each

Qty

Product Details

Application Fan/Blower

Body Dia. 5 11/16 in

Bolt Circle Dia. 5 1/8 in

Capacitor Required 2MDV9

Conduit Box Location Exterior

Conduit Box Position F1

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Extended Thru-Bolts Yes

Frame 48Z

Full Load Amps 2.1 A

HP_ 3/4

Hz_ 60 Hz

Ins. Class B

Lead Length 27 in

Length Less Shaft 6 3/8 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 40 Degrees C

Motor Application HVAC/R

Motor Bearings Ball

Motor Design Permanent Split Capacitor

Motor Enclosure Design Open Air-Over

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Stud

Motor Service Factor 1

Motor Shaft Design Flat

Motor Shaft Rotation CW/CCW

Motor Sub Application Direct Drive Fan/Blower

Motor Thermal Protection Auto

Mounting Stud Pattern 3-5/8 in x 3-5/8 in

Nameplate RPM 1,075

No. of Speeds 2

Nominal Efficiency 0.64 %

Number of Shafts 1

Overall Length 12 7/16 in

Package Quantity 1

Phase Single

RPM Range 1,001-1,100

Shaft Dia. 1/2 in

Shaft Length 6 1/16 in

Standards CSA (LR2025), UL (E6312)

Stud Quantity 4

Stud Size #10-32

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 19 lb
