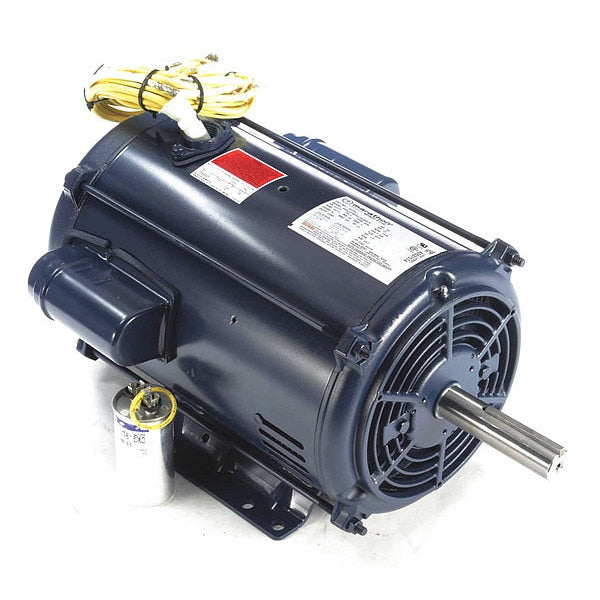

Crop Dryer Motor, Capacitor-Start/Run, 10 HP, 230V AC, 3,455 Nameplate RPM, 215TZ Frame

SKU
Brand Marathon Motors
Categories
Description Crop Dryer Motor, Single Phase, Motor Design Capacitor-Start/Run, 10 HP, Nameplate RPM 3,455, No. of Speeds 1, Voltage 230V AC, Full Load Amps 39.5 A, 215TZ Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
graingerSKU: 482P97, mscSKU: , zoro_no: G6668057, mongo_id: 65bbee41526e052139afd036

Web Price

$2,551.24 / each

Product Details

Capacitor Required Included

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Finish Enamel

Frame 215TZ

Full Load Amps 39.5 A

HP_ 10

Hz_ 60 Hz

Ins. Class F

Item - Farm Duty Motors Crop Dryer Motor

Length Less Shaft 15 13/16 in

Max. Ambient Temp. 40 Degrees C

Max. Ambient Temperature 40 Degrees C

Motor Application Farm Duty

Motor Bearings Ball

Motor Design Capacitor-Start/Run

Motor Enclosure Design Open Dripproof

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Sub Application Crop Dryer

Motor Thermal Protection T-Stat

Nameplate RPM 3,455

No. of Speeds 1

Nominal Efficiency 85.5 %

Overall Length 20 7/16 in

Package Quantity 1

Phase Single

RPM Range 3,001-3,600

Shaft Dia. 1 1/8 in

Shaft Length 4 5/8 in

Standards CSA Certified, UL Recognized

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 137 lb
