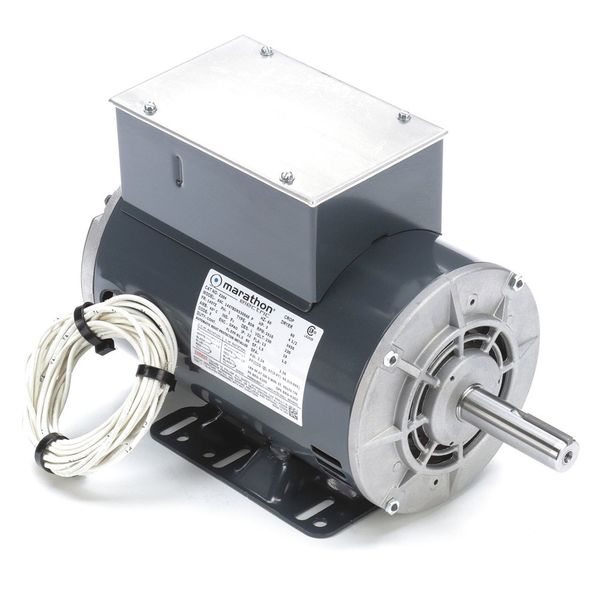

Crop Dryer Motor, Capacitor-Start/Run, 3 HP, 230V AC, 3,510 Nameplate RPM, 145TZ Frame

SKU
Brand Marathon Motors
Categories
Description Crop Dryer Motor, Single Phase, Motor Design Capacitor-Start/Run, 3 HP, Nameplate RPM 3,510, No. of Speeds 1, Voltage 230V AC, Full Load Amps 13 A, 145TZ Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.5, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
graingerSKU: 26ZY47, mscSKU: , zoro_no: G5739176, mongo_id: 65bbe77c9a749db82273e0d9

Web Price

$769.99 / each

Qty

Product Details

Capacitor Required Yes

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Finish Gray

Frame 145TZ

Frame Material Rolled steel

Full Load Amps 13 A

HP_ 3

Hz_ 60 Hz

Includes 34 Leads, Keyed Shaft with 1/4-20 Tapped Hole

Ins. Class F

Item - Farm Duty Motors Crop Dryer Motor

Length Less Shaft 10 11/16 in

Max. Ambient Temp. 40 Degrees C

Max. Ambient Temperature 40 Degrees C

Motor Application Farm Duty

Motor Bearings Ball

Motor Design Capacitor-Start/Run

Motor Efficiency Group Standard Efficient

Motor Enclosure Design Open Dripproof Air-Over

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.5

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Sub Application Crop Dryer

Motor Thermal Protection Auto

Nameplate RPM 3,510

No. of Speeds 1

Nominal Efficiency 81.5 %

Overall Length 13 3/4 in

Package Quantity 1

Phase Single

RPM Range 3,001-3,600

Shaft Dia. 7/8 in

Shaft Length 3 in

Standards CSA Certified, UL Recognized

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 43 lb
