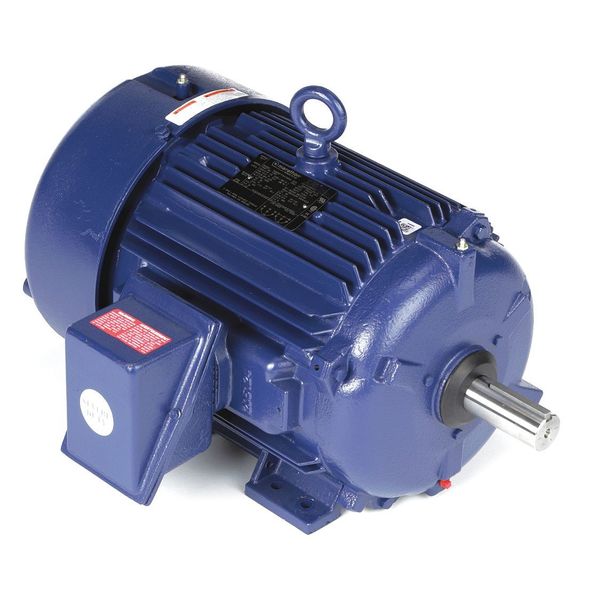

Definite Purpose Motor, Three Phase, 15, 3-3/4 HP, 1,765/875 Nameplate RPM, 460V AC, 256T Frame

SKU
Brand Marathon Motors
Categories
Description Definite Purpose Motor, Three Phase, Motor Design 3-Phase, 15, 3 3/4 HP, Nameplate RPM 1,765/875, No. of Speeds 2, Voltage 460V AC, 18.0/6.0 Full Load Amps, 256T Frame, Output Watts 11200 W, 60 Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base
graingerSKU: , mscSKU: , zoro_no: G9827702, mongo_id: 65bbe6173aaddbd5a90072de

Web Price

$4,629.99 / each

Product Details

Ambient Temperature 40 Degrees C

Body Dia. 14 1/4 in

CC Number CC003A

Conduit Box Location Exterior

Conduit Box Position F1, F2

Country of Origin (subject to change) United States

Duty Continuous

Duty Cycle Continuous

Features Extended Grease Tubes, Forsheda Seals on Both Ends, Regreasable, Shaft Slinger, T Drains Provided For Effective Drainage

Finish Epoxy

Frame 256T

Frame Material Cast Iron

Full Load Amps 18.0/6.0

Green Certification or Other Recognition NEMA Premium(R) Rated

HP_ 15, 3-3/4

Hz_ 60

Ins. Class F

Length Less Shaft 21 3/16 in

Max. Ambient Temp. 40 Degrees C

Motor Application Cooling Tower

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Sub Application Speed Definite Purpose AC Motor

Motor Thermal Protection None

Nameplate RPM 1,765/875

No. of Speeds 2

Nominal Efficiency 90.2 %

Output Watts 11200 W

Overall Length 25 3/8 in

Package Quantity 1

Phase Three

RPM Range 1,701-1,800

Shaft Dia. 1 5/8 in

Shaft Length 4 in

Standards CE Listed, CSA Certified, UL Recognized

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Warranty 1 yr

Weight 381 lb
