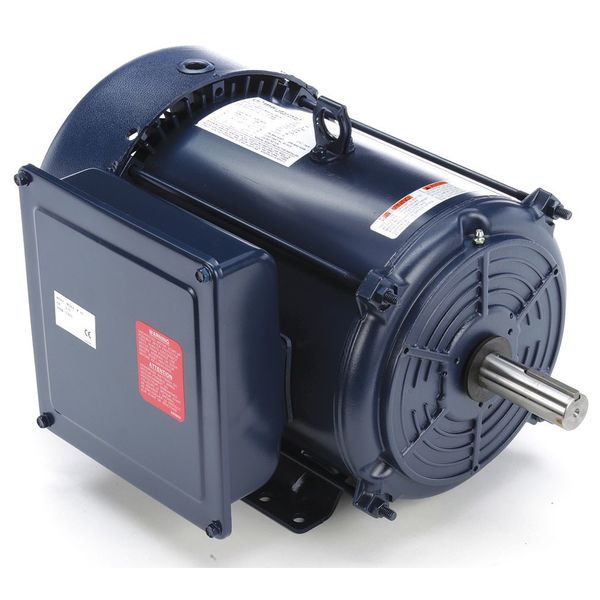

General Purpose Farm Duty Motor, Capacitor-Start/Run, 5 HP, 230V AC, 1,740 Nameplate RPM

SKU
Brand Marathon Motors
Categories
Description General Purpose Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 HP, Nameplate RPM 1,740, No. of Speeds 1, Voltage 230V AC, Full Load Amps 22.6 A, 213TZ Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base
graingerSKU: 26CK63, mscSKU: , zoro_no: G5561875, mongo_id: 65bbee41526e052139afd030

Web Price

$1,878.74 / each

Product Details

Capacitor Required Yes

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Finish Enamel

Frame 213TZ

Frame Material Rolled steel

Full Load Amps 22.6 A

HP_ 5

Hz_ 60 Hz

Includes Condensate Drain, Shaft Slinger

Ins. Class F

Item - Farm Duty Motors General Purpose Farm Duty Motor

Length Less Shaft 14 7/8 in

Max. Ambient Temp. 40 Degrees C

Max. Ambient Temperature 40 Degrees C

Motor Application Farm Duty

Motor Bearings Ball

Motor Design Capacitor-Start/Run

Motor Efficiency Group Standard Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Sub Application Extra High Torque

Motor Thermal Protection Manual

Nameplate RPM 1,740

No. of Speeds 1

Nominal Efficiency 82.5 %

Overall Length 18 5/16 in

Package Quantity 1

Phase Single

RPM Range 1,701-1,800

Shaft Dia. 1 1/8 in

Shaft Length 3 1/2 in

Standards CSA Certified, UL Recognized

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 119 lb
