Home / General Purpose Farm Duty Motor, Capacitor-Start/Run, 7 1/2 HP, 230V AC, 1,750 Nameplate RPM

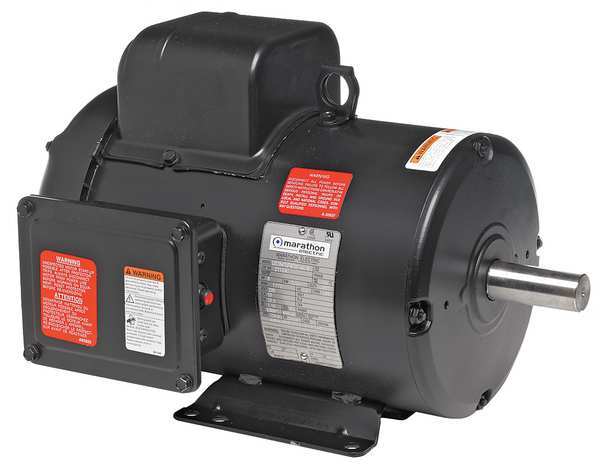

General Purpose Farm Duty Motor, Capacitor-Start/Run, 7 1/2 HP, 230V AC, 1,750 Nameplate RPM

SKU
Brand Marathon Motors
Categories
Description General Purpose Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 7 1/2 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 230V AC, Full Load Amps 30.5 A, 215TZ Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base
graingerSKU: 26CK64, mscSKU: , zoro_no: G9824367, mongo_id: 65bbe82222d7a989a98db64d

Web Price

$2,546.24 / each

Product Details

Capacitor Required Yes

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Finish Enamel

Frame 215TZ

Frame Material Rolled steel

Full Load Amps 30.5 A

HP_ 7 1/2

Hz_ 60 Hz

Includes Condensate Drain, Shaft Slinger

Ins. Class F

Item - Farm Duty Motors General Purpose Farm Duty Motor

Length Less Shaft 17 9/16 in

Max. Ambient Temp. 40 Degrees C

Max. Ambient Temperature 40 Degrees C

Motor Application Farm Duty

Motor Bearings Ball

Motor Design Capacitor-Start/Run

Motor Efficiency Group Standard Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Sub Application Extra High Torque

Motor Thermal Protection Manual

Nameplate RPM 1,750

No. of Speeds 1

Nominal Efficiency 85.5 %

Overall Length 21 1/16 in

Package Quantity 1

Phase Single

RPM Range 1,701-1,800

Shaft Dia. 1 1/8 in

Shaft Length 3 1/2 in

Standards CSA Certified, UL Recognized

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 155 lb
