Home / General Purpose Motor, Three Phase, 10 HP, 3,525 Nameplate RPM, 230/460V AC, 215T Frame

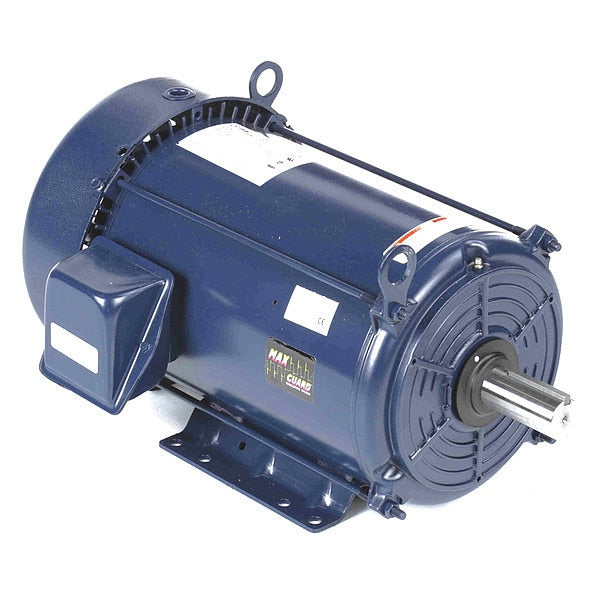

General Purpose Motor, Three Phase, 10 HP, 3,525 Nameplate RPM, 230/460V AC, 215T Frame

General Purpose Motor, Three Phase, 10 HP, 3,525 Nameplate RPM, 230/460V AC, 215T Frame

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 10 hp HP, Nameplate RPM 3,525, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 23.6/11.8 A, 215T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal

    graingerSKU: 482R07, mscSKU: , zoro_no: G6571938, mongo_id: 65bbe5bc3aaddbd5a9fe3150

Web Price
$1,559.99 / each

Product Details

CC003A
Mexico
Continuous
Continuous
215T
23.6/11.8 A
23.6/11.8 A
NEMA Premium(R) Rated
10
10 hp
60/50 Hz
F
No
16 3/4 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
Totally Enclosed Fan-Cooled
Steel
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
3,525
1
90.2 %
20 1/4 in
1
Three
3,525
3001-3600
3,001-3,600
1.15
1 3/8 in
3 1/2 in
CE Listed, CSA (LR2025), UL (E49747)
No
No
230/460V AC
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
