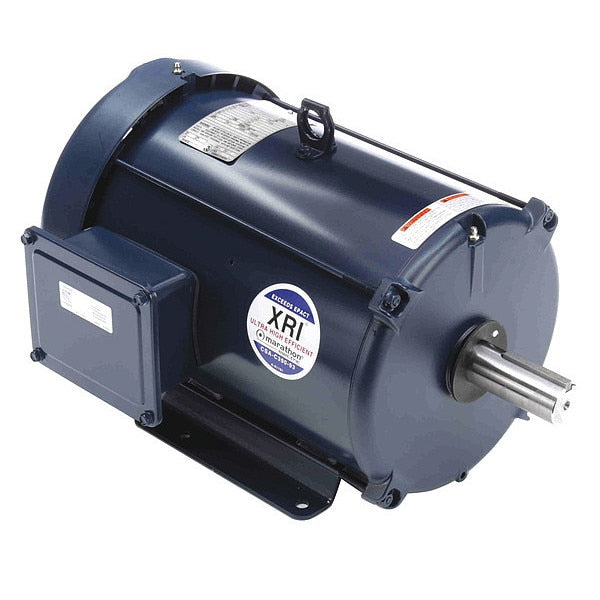

Home / General Purpose Motor, Three Phase, 7 1/2 HP, 1,765 Nameplate RPM, 208-230/460V AC, 213T Frame
General Purpose Motor, Three Phase, 7 1/2 HP, 1,765 Nameplate RPM, 208-230/460V AC, 213T Frame

General Purpose Motor, Three Phase, 7 1/2 HP, 1,765 Nameplate RPM, 208-230/460V AC, 213T Frame

  • Marathon Motors
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 7 1/2 hp HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 20.8-19.6/9.8 A, 213T Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base

    graingerSKU: 482P79, mscSKU: , zoro_no: G6543238, mongo_id: 65bbea1722d7a989a9995b73

Web Price
$1,417.49 / each

Product Details

CC003A
Mexico
Continuous
Continuous
213T
20.8-19.6/9.8 A
20.8-19.6/9.8 A
NEMA Premium(R) Rated
7 1/2
7 1/2 hp
60/50 Hz
F
No
15 3/8 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
Totally Enclosed Fan-Cooled
Steel
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
1,765
1
91.7 %
18 3/4 in
1
Three
1,765
1701-1800
1,701-1,800
1.15
1 3/8 in
3 3/8 in
CE Listed, CSA (LR2025), UL (E49747)
No
Yes
208-230/460V AC
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
