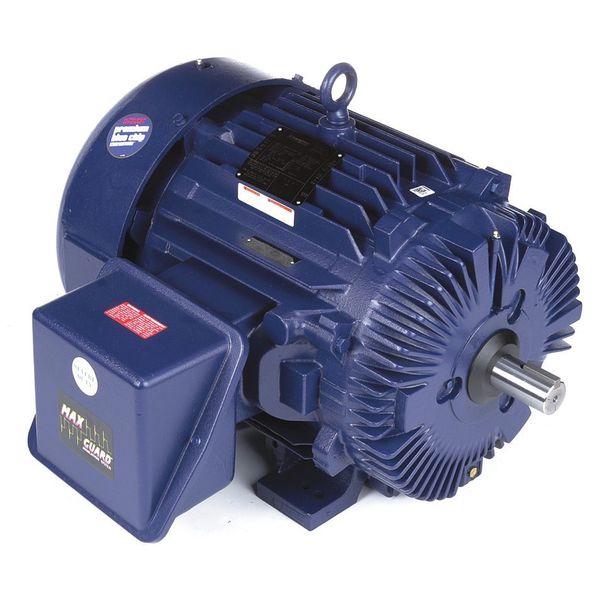

Name: General Purpose Mtr, 3-Ph, TEFC, 75 HP
Brand: Marathon Motors
SKU: G2245321
Price: 12216.19 USD
Availability: InStock

Home / General Purpose Mtr, 3-Ph, TEFC, 75 HP

General Purpose Mtr, 3-Ph, TEFC, 75 HP

SKU
Brand Marathon Motors
Categories
Description Severe Duty Motor, Three Phase, Motor Design 3-Phase, 75 hp HP, Nameplate RPM 3,570, No. of Speeds 1, Voltage 460V AC, Full Load Amps 84.0 A, 365TS Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class H, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
graingerSKU: 19RY09, mscSKU: , zoro_no: G2245321, mongo_id: 65bbe5993aaddbd5a9fd4cb0

Web Price

$12,216.19 / each

Qty

Product Details

CC Number CC003A

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 365TS

Frame Material Cast Iron

Full Load Amps 84.0 A

Green Certification or Other Recognition NEMA Premium(R) Rated

Hazardous Location Class 1 C,D / 2 F,G

HP_ 75 hp

Hz_ 60 Hz

Includes Conduit Box

Ins. Class H

Inverter Rated Yes

Lead Length 3 to 8

Length Less Shaft 26 3/8 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 104 Degrees F

Motor Application General Application

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 3,570

NEMA Design B

No. of Speeds 1

Nominal Efficiency 94.5 %

Overall Length 30 3/8 in

Package Quantity 1

Phase Three

RPM Group 3001-3600

RPM Range 3,001-3,600

Shaft Dia. 1 7/8 in

Shaft Length 4 in

Standards CSA Certified, UL Listed

Temp. Code T2B

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 939 lb
