Home / Hazardous Loc Mtr, 3-Ph, EPFC, 3/4 HP, T3B

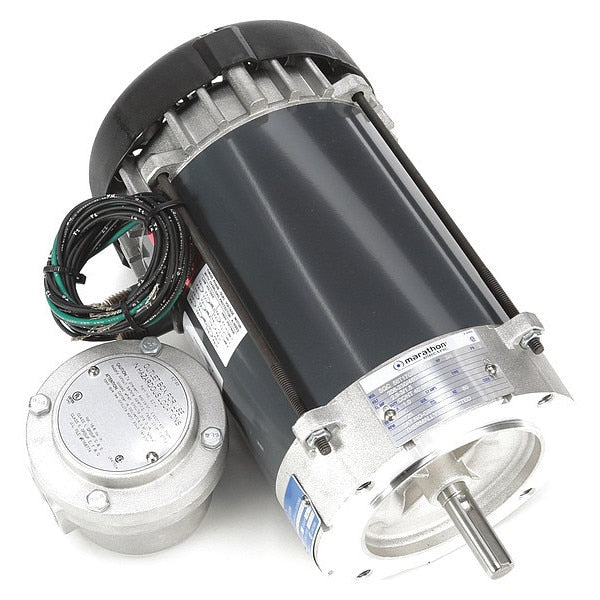

Hazardous Loc Mtr, 3-Ph, EPFC, 3/4 HP, T3B

SKU
Brand Marathon Motors
Categories
Description Hazardous Location Motor, Three Phase, Motor Design 3-Phase, 3/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.9-3.0/1.5 A, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Max. Ambient Temp. 104 Degrees F, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class 1 C,D / 2 F,G, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Duty Cycle Continuous, Motor Mounting Type Face, NEMA Design B
graingerSKU: 19RW15, mscSKU: , zoro_no: G5594285, mongo_id: 65bbe7d19a749db82275ab3e

Web Price

$862.49 / each

Product Details

Conduit Box Location Exterior

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 56C

Frame Material Rolled steel

Full Load Amps 2.9-3.0/1.5 A

Hazardous Location Class 1 C,D / 2 F,G

Hazardous Location Division Division 1

HP_ 3/4

Hz_ 60 Hz

Includes Conduit Box

Ins. Class B

Lead Length 13 in

Length Less Shaft 11 7/8 in

Max. Ambient Temp. 104 Degrees F

Motor Application Hazardous Location

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group Standard Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Face

Motor Service Factor 1

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection Auto

Nameplate RPM 1,725

NEMA Design B

No. of Speeds 1

Nominal Efficiency 75.5 %

Overall Length 13 15/16 in

Package Quantity 1

Phase Three

RPM Range 1,701-1,800

Shaft Dia. 5/8 in

Shaft Length 2 1/16 in

Standards CSA Certified, UL Listed

Temp. Code T3B

Usable @ 200V No

Usable @ 208V Yes

Voltage 208-230/460V AC

Voltage Compatibility 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC

Weight 29 lb
