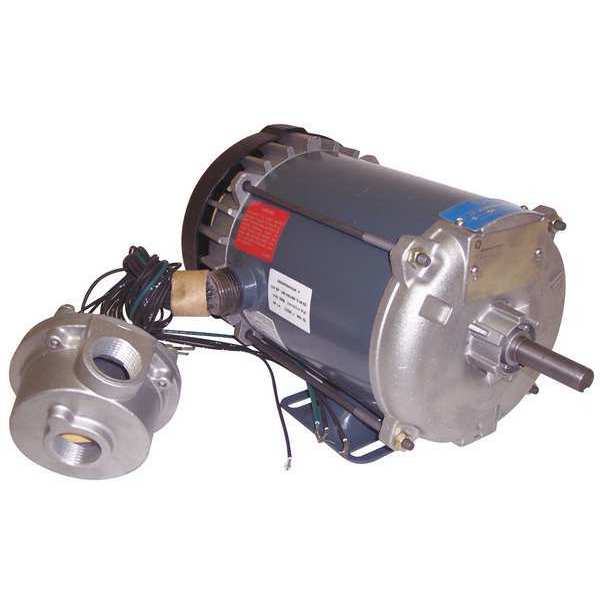

Hazardous Loc Mtr, 3 Ph, TEFC, 1/2 HP, T3B

SKU
Brand Marathon Motors
Categories
Description Hazardous Location Motor, Three Phase, Motor Design 3-Phase, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.3-2.4/1.2 A, 56 Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60/50 Hz, Max. Ambient Temp. 104 Degrees F, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class 1 C,D / 2 E,F,G, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base
graingerSKU: 1TUE5, mscSKU: , zoro_no: G1621891, mongo_id: 65bbe98022d7a989a995c61a

Web Price

$664.99 / each

Qty

Product Details

Conduit Box Location Exterior

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 56

Frame Material Rolled steel

Full Load Amps 2.3-2.4/1.2 A

Full Load Amps @ 50Hz 2.3-2.4/1.2 A

Hazardous Location Class 1 C,D / 2 E,F,G

HP @ 50Hz 1/2

HP_ 1/2

Hz_ 60/50 Hz

Includes Conduit Box (Unmounted), Leads through 1 in NPT Nipple

Ins. Class B

Lead Length 6 in

Length Less Shaft 12 1/16 in

Max. Ambient Temp. 104 Degrees F

Motor Application Hazardous Location

Motor Bearings Ball

Motor Design 3-Phase

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection Auto

Nameplate RPM 1,725

NEMA Design B

No. of Speeds 1

Nominal Efficiency 86.5 %

Overall Length 13 15/16 in

Package Quantity 1

Phase Three

RPM @ 50Hz 1,725

RPM Range 1,701-1,800

Service Factor @ 50Hz 1

Shaft Dia. 5/8 in

Shaft Length 1 7/8 in

Standards CSA Certified (LR47504), UL Listed (E12044)

Temp. Code T3B

Usable @ 200V No

Usable @ 208V Yes

Voltage 208-230/460V AC

Voltage @ 50Hz 208-230/460V AC

Voltage Compatibility 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC

Weight 28 lb
