Home / Hazardous Loc Mtr, 3 Ph, TEFC, 1/3 HP, T3B

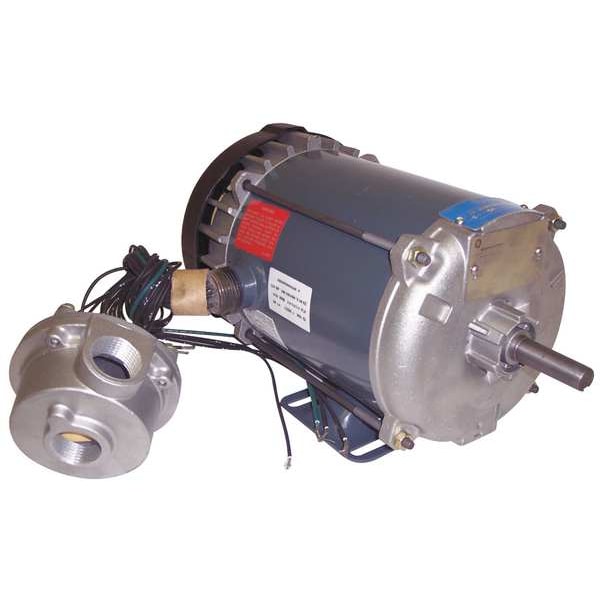

Hazardous Loc Mtr, 3 Ph, TEFC, 1/3 HP, T3B

SKU
Brand Marathon Motors
Categories
Description Hazardous Location Motor, Three Phase, Motor Design 3-Phase, 1/3 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.5-1.5/0.75 A, 56 Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Max. Ambient Temp. 104 Degrees F, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class 1 C,D / 2 E,F,G, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base
graingerSKU: 1TUD1, mscSKU: , zoro_no: G2336284, mongo_id: 65bbe87822d7a989a98f80a9

Web Price

$722.49 / each

Qty

Product Details

Conduit Box Location Exterior

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 56

Frame Material Rolled steel

Full Load Amps 1.5-1.5/0.75 A

Hazardous Location Class 1 C,D / 2 E,F,G

HP_ 1/3

Hz_ 60 Hz

Includes Conduit Box (Unmounted), Leads through 1 in NPT Nipple

Ins. Class B

Lead Length 6 in

Length Less Shaft 11 1/2 in

Max. Ambient Temp. 104 Degrees F

Motor Application Hazardous Location

Motor Bearings Ball

Motor Design 3-Phase

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection Auto

Nameplate RPM 1,140

NEMA Design B

No. of Speeds 1

Nominal Efficiency 76.5 %

Overall Length 13 3/8 in

Package Quantity 1

Phase Three

RPM Range 1,101-1,200

Shaft Dia. 5/8 in

Shaft Length 1 7/8 in

Standards CSA Certified (LR47504), UL Listed (E12044)

Temp. Code T3B

Usable @ 200V No

Usable @ 208V Yes

Voltage 208-230/460V AC

Voltage Compatibility 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC

Weight 133 lb
