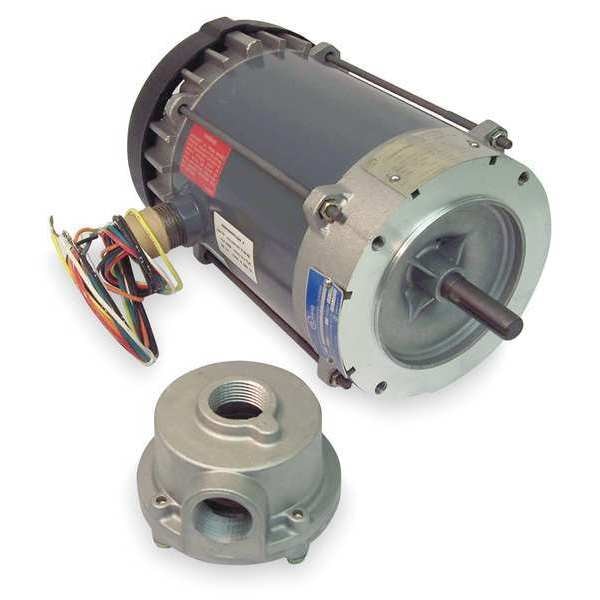

Hazardous Loc Mtr, 3 Ph, TEFC, 2 HP, T3B

SKU
Brand Marathon Motors
Categories
Description Hazardous Location Motor, Three Phase, Motor Design 3-Phase, 2 HP, Nameplate RPM 1,760, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 6.2-6.0/3.0 A, 145TC Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Max. Ambient Temp. 104 Degrees F, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class 1 C,D / 2 E,F,G, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Duty Cycle Continuous, Motor Mounting Type Face/Base
graingerSKU: 6KWF3, mscSKU: , zoro_no: G3551931, mongo_id: 65bbe7f522d7a989a98ccf62

Web Price

$1,011.24 / each

Qty

Product Details

CC Number CC003A

Conduit Box Location Exterior

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 145TC

Frame Material Rolled steel

Full Load Amps 6.2-6.0/3.0 A

Green Certification or Other Recognition NEMA Premium(R) Rated

Hazardous Location Class 1 C,D / 2 E,F,G

HP_ 2

Hz_ 60 Hz

Includes (11) Leads in Conduit Box

Ins. Class F

Lead Length 18 in

Length Less Shaft 14 3/8 in

Max. Ambient Temp. 104 Degrees F

Motor Application Hazardous Location

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Face/Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection T-Stat

Nameplate RPM 1,760

NEMA Design B

No. of Speeds 1

Nominal Efficiency 92.4 %

Overall Length 16 1/2 in

Package Quantity 1

Phase Three

RPM Range 1,701-1,800

Shaft Dia. 7/8 in

Shaft Length 2 1/8 in

Standards CSA Certified (LR47504), UL Listed (E12044)

Temp. Code T3B

Usable @ 200V No

Usable @ 208V Yes

Voltage 208-230/460V AC

Voltage Compatibility 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC

Weight 35 lb
