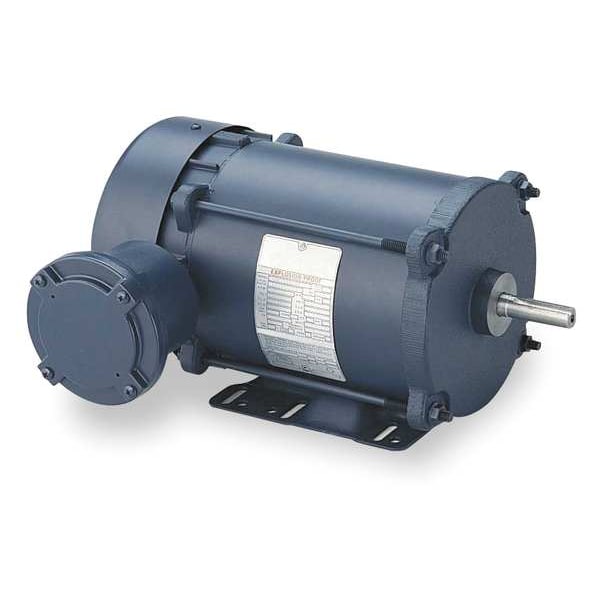

Hazardous Location Motor, 1 HP, 1140 rpm

SKU
Brand Marathon Motors
Categories
Description Hazardous Location Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.8-3.8/1.9 A, 56H Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Max. Ambient Temp. 104 Degrees F, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class 1 C,D / 2 E,F,G, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Duty Cycle Continuous, Motor Mounting Type Face/Base
graingerSKU: 407M07, mscSKU: , zoro_no: G0749222, mongo_id: 65bbe95a22d7a989a994e002

Web Price

$953.74 / each

Qty

Product Details

CC Number CC003A

Conduit Box Location Exterior

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 56H

Full Load Amps 3.8-3.8/1.9 A

Green Certification or Other Recognition NEMA Premium(R) Rated

Hazardous Location Class 1 C,D / 2 E,F,G

HP_ 1

Hz_ 60 Hz

Ins. Class B

Lead Length 18 in

Length Less Shaft 14 3/16 in

Max. Ambient Temp. 104 Degrees F

Motor Application Hazardous Location

Motor Bearings Ball

Motor Design 3-Phase

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Face/Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection Auto

Nameplate RPM 1,140

NEMA Design B

No. of Speeds 1

Nominal Efficiency 85.5 %

Overall Length 16 1/16 in

Package Quantity 1

Phase Three

RPM Range 1,101-1,200

Shaft Dia. 5/8 in

Shaft Length 1 7/8 in

Standards CSA (LR47504), UL (E12044)

Temp. Code T3B

Usable @ 200V No

Usable @ 208V Yes

Voltage 208-230/460V AC

Voltage Compatibility 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC

Weight 76 lb
