Home / Hazardous Location Motor, 350 HP, 395.0A

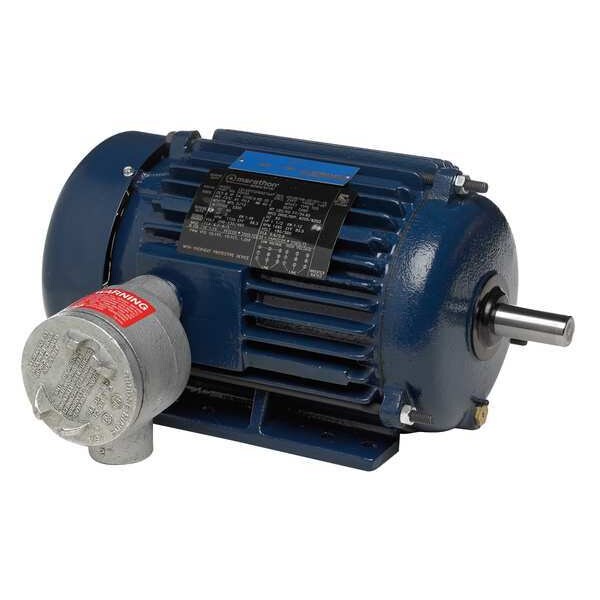

Hazardous Location Motor, 350 HP, 395.0A

SKU
Brand Marathon Motors
Categories
Description Hazardous Location Motor, Three Phase, Motor Design 3-Phase, 350 HP, Nameplate RPM 1,785, No. of Speeds 1, Voltage 460V AC, Full Load Amps 395 A, 447/449T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Max. Ambient Temp. 104 Degrees F, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class 1 C,D / 2 F,G, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B
graingerSKU: 53DE30, mscSKU: , zoro_no: G8497931, mongo_id: 65bbe93422d7a989a993fac4

Web Price

$65,452.76 / each

Product Details

CC Number CC003A

Conduit Box Location Exterior

Country of Origin (subject to change) United States

Duty Continuous

Duty Cycle Continuous

Frame 447/449T

Full Load Amps 395 A

Green Certification or Other Recognition NEMA Premium(R) Rated

Hazardous Location Class 1 C,D / 2 F,G

Hazardous Location Division Division 1

HP_ 350

Hz_ 60 Hz

Ins. Class F

Lead Length 10 in

Length Less Shaft 43 1/16 in

Manufacturers Warranty Length 3 yr

Max. Ambient Temp. 104 Degrees F

Motor Application Hazardous Location

Motor Bearings Ball, Roller

Motor Design 3-Phase

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection T-Stat

Nameplate RPM 1,785

NEMA Design B

No. of Speeds 1

Nominal Efficiency 96.2 %

Overall Length 51 7/8 in

Package Quantity 1

Phase Three

RPM Range 1,701-1,800

Shaft Dia. 3 3/8 in

Shaft Length 8 3/4 in

Standards UL Certified for Canada, UL Listed

Temp. Code T3B

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 133 lb
