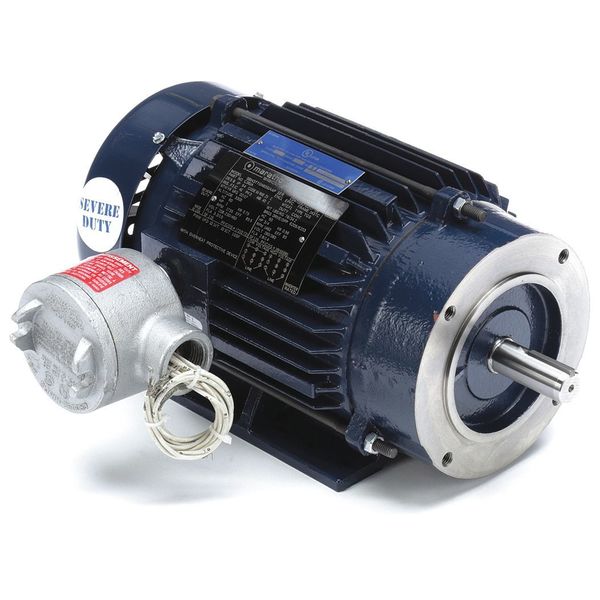

HazLoc Motor, 1 HP, 1735 RPM, 208-230/460V

SKU
Brand Marathon Motors
Categories
Description Hazardous Location Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1,735, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.0-3.0/1.5 A, 143TC Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Max. Ambient Temp. 104 Degrees F, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class 1 D / 2 F,G, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base
graingerSKU: 39P309, mscSKU: , zoro_no: G5492243, mongo_id: 65bbe82222d7a989a98db646

Web Price

$1,157.49 / each

Qty

Product Details

CC Number CC003A

Conduit Box Location Exterior

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 143TC

Frame Material Cast Iron

Full Load Amps 3.0-3.0/1.5 A

Green Certification or Other Recognition NEMA Premium(R) Rated

Hazardous Location Class 1 D / 2 F,G

Hazardous Location Division Division 1

HP_ 1

Hz_ 60 Hz

Includes (11) 12 in Leads in the Conduit Box

Ins. Class F

Length Less Shaft 13 1/8 in

Manufacturers Warranty Length 3 yr

Max. Ambient Temp. 104 Degrees F

Motor Application Hazardous Location

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection T-Stat

Nameplate RPM 1,735

NEMA Design B

No. of Speeds 1

Nominal Efficiency 85.5 %

Overall Length 15 1/4 in

Package Quantity 1

Phase Three

RPM Range 1,701-1,800

Shaft Dia. 7/8 in

Shaft Length 2 1/8 in

Standards CSA Certified, UL Listed

Temp. Code T3B

Usable @ 200V No

Usable @ 208V Yes

Voltage 208-230/460V AC

Voltage Compatibility 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC

Weight 50 lb
