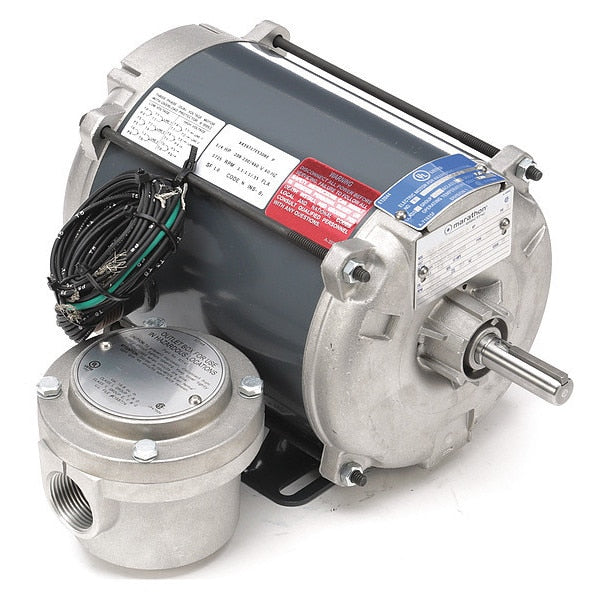

HazLoc Motor, 1/4 HP, 1725 RPM, 56

SKU
Brand Marathon Motors
Categories
Description Hazardous Location Motor, Three Phase, Motor Design 3-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.1-1.1/0.55 A, 56 Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Max. Ambient Temp. 104 Degrees F, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class 1 C,D / 2 F,G, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Nonventilated, Duty Cycle Continuous, Motor Mounting Type Rigid Base
graingerSKU: 39P313, mscSKU: , zoro_no: G5559154, mongo_id: 65bbe7f59a749db82276907b

Web Price

$783.74 / each

Qty

Product Details

Conduit Box Location Exterior

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 56

Frame Material Rolled steel

Full Load Amps 1.1-1.1/0.55 A

Hazardous Location Class 1 C,D / 2 F,G

Hazardous Location Division Division 1

HP_ 1/4

Hz_ 60 Hz

Includes Explosion Proof Conduit Box

Ins. Class B

Length Less Shaft 10 in

Max. Ambient Temp. 104 Degrees F

Motor Application Hazardous Location

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group Standard Efficient

Motor Enclosure Design Totally Enclosed Nonventilated

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection Auto

Nameplate RPM 1,725

NEMA Design B

No. of Speeds 1

Nominal Efficiency 75 %

Overall Length 12 in

Package Quantity 1

Phase Three

RPM Range 1,701-1,800

Shaft Dia. 5/8 in

Shaft Length 2 in

Standards CSA Certified, UL Listed

Temp. Code T3B

Usable @ 200V No

Usable @ 208V Yes

Voltage 208-230/460V AC

Voltage Compatibility 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC

Weight 28 lb
