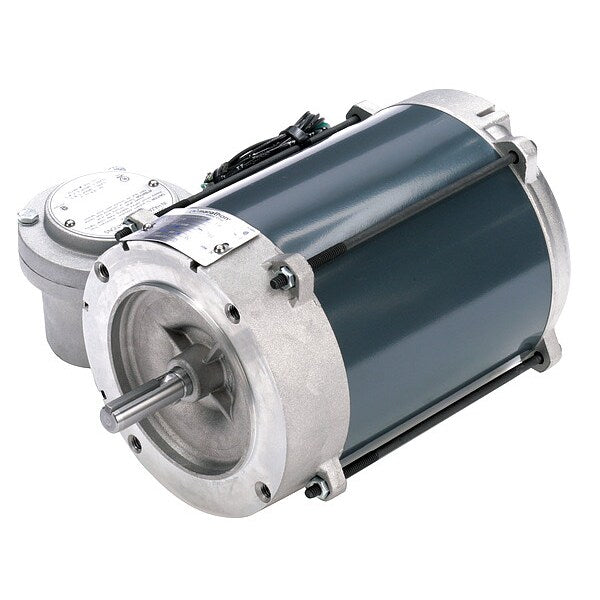

HazLoc Motor, 3-Ph, 1/4 HP, 1725 RPM, 56C

SKU
Brand Marathon Motors
Categories
Description Hazardous Location Motor, Three Phase, Motor Design 3-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.1-1.1/0.55 A, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Max. Ambient Temp. 104 Degrees F, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class 1 C,D / 2 F,G, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Nonventilated, Duty Cycle Continuous, Motor Mounting Type Face, NEMA Design B
graingerSKU: 39P314, mscSKU: , zoro_no: G5759957, mongo_id: 65bbe84c22d7a989a98e9b07

Web Price

$646.24 / each

Qty

Product Details

Conduit Box Location Exterior

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 56C

Frame Material Rolled steel

Full Load Amps 1.1-1.1/0.55 A

Hazardous Location Class 1 C,D / 2 F,G

Hazardous Location Division Division 1

HP_ 1/4

Hz_ 60 Hz

Includes Conduit Box (Unmounted), (13) 18 in Leads through 1 NPT Nipple

Ins. Class B

Length Less Shaft 9 15/16 in

Max. Ambient Temp. 104 Degrees F

Motor Application Hazardous Location

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group Standard Efficient

Motor Enclosure Design Totally Enclosed Nonventilated

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Face

Motor Service Factor 1

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection Auto

Nameplate RPM 1,725

NEMA Design B

No. of Speeds 1

Nominal Efficiency 75 %

Overall Length 12 in

Package Quantity 1

Phase Three

RPM Range 1,701-1,800

Shaft Dia. 5/8 in

Shaft Length 2 1/16 in

Standards CSA Certified, UL Listed

Temp. Code T3B

Usable @ 200V No

Usable @ 208V Yes

Voltage 208-230/460V AC

Voltage Compatibility 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC

Weight 71 lb
