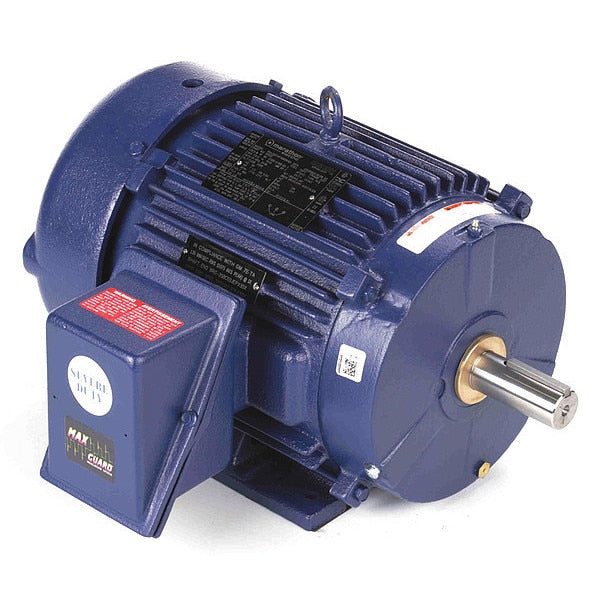

IEEE 841 Motor, Three Phase, 7 1/2 HP, 1768 Nameplate RPM, 460V AC, 213T Frame

SKU
Brand Marathon Motors
Categories
Description IEEE 841 Motor, Three Phase, Motor Design 3-Phase, 7 1/2 hp HP, Nameplate RPM 1,768, No. of Speeds 1, Voltage 460V AC, Full Load Amps 9.5 A, 213T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class H, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
graingerSKU: 482P68, mscSKU: , zoro_no: G6566548, mongo_id: 65bbe7f522d7a989a98cce2d

Web Price

$1,899.99 / each

Product Details

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 213T

Full Load Amps 9.5 A

HP_ 7 1/2 hp

Hz_ 60 Hz

Ins. Class H

Inverter Rated Yes

Length Less Shaft 16 1/8 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 104 Degrees F

Motor Application IEEE Motor

Motor Bearings Ball

Motor Design 3-Phase

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 1,768

NEMA Design B

No. of Speeds 1

Nominal Efficiency 93.3 %

Overall Length 18 1/2 in

Package Quantity 1

Phase Three

RPM Group 1701-1800

RPM Range 1,701-1,800

Shaft Dia. 1 3/8 in

Shaft Length 3 1/2 in

Standards CE Listed, CSA (LR2025), UL (E49747)

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Weight 207 lb
