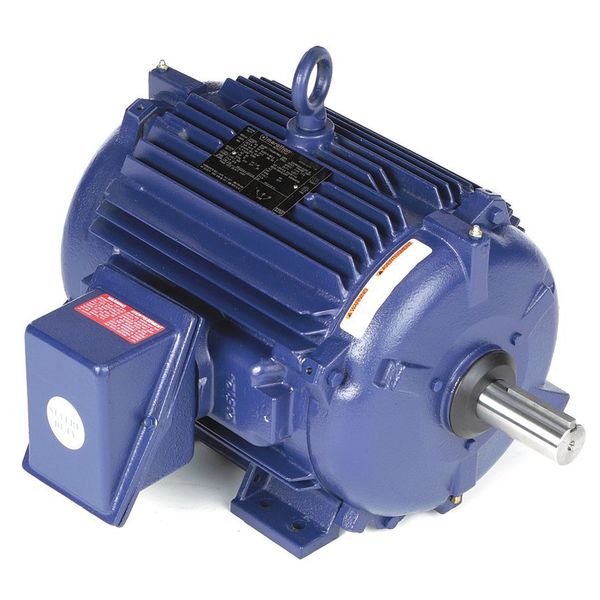

Kiln Motor, 3-Ph, 10 HP, 1172 RPM, 460V, 256T

SKU
Brand Marathon Motors
Categories
Description Kiln Motor, Three Phase, Motor Design 3-Phase, 10 HP, Nameplate RPM 1,172, No. of Speeds 1, Voltage 460V AC, Full Load Amps 12.8, 256T Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 90 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCW, CW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Lead Length 96 in, Inverter Rated Yes
graingerSKU: 21EN55, mscSKU: , zoro_no: G9927452, mongo_id: 65bbe7f59a749db82276907c

Web Price

$5,047.49 / each

Product Details

CC Number CC003A

Conduit Box Location Exterior

Conduit Box Position F1, F2

Country of Origin (subject to change) United States

Duty Cycle Continuous

Frame 256T

Frame Material Cast Iron

Full Load Amps 12.8

Green Certification or Other Recognition NEMA Premium(R) Rated

HP_ 10

Hz_ 60

Ins. Class H

Inverter Rated Yes

Inverter Rating 20:1 Variable Torque

Lead Length 96 in

Length Less Shaft 18 1/8 in

Manufacturers Warranty Length 2 yr

Max. Ambient Temp. 90 Degrees C

Motor Application Kiln

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Totally Enclosed Air-Over

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CCW, CW

Motor Thermal Protection None

Nameplate RPM 1,172

No. of Speeds 1

Nominal Efficiency 91 %

Overall Length 22 3/8 in

Package Quantity 1

Phase Three

RPM Range 1,101-1,200

Shaft Dia. 1 5/8 in

Shaft Length 4 1/4 in

Standards CSA

Thermal Protection T-Stat

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Warranty (Years) 2

Weight 351 lb
