Home / Metric Motor, 5 1/2 HP, 1,180 RPM, 230/460V

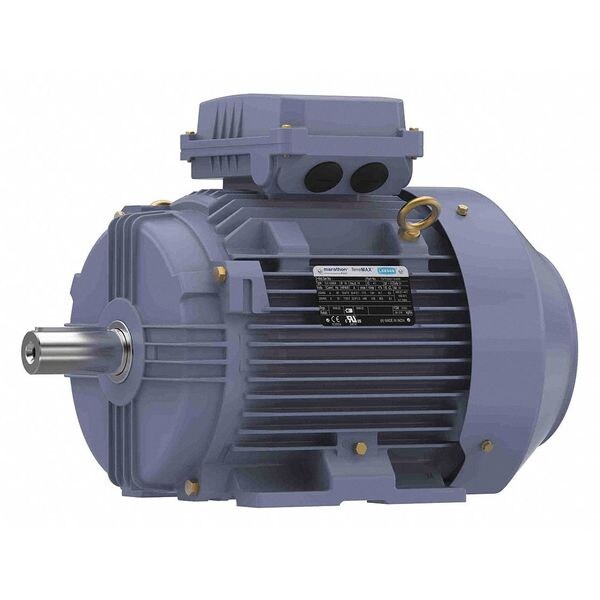

Metric Motor, 5 1/2 HP, 1,180 RPM, 230/460V

Metric Motor, 5 1/2 HP, 1,180 RPM, 230/460V

  • Marathon Motors
  • Metric Motor, Three Phase, Motor Design 3-Phase, 5 1/2 hp HP, Nameplate RPM 1,180, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 16.2/8.1 A, 132M Frame, Usable @ 208V No, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal

    graingerSKU: 55AY86, mscSKU: , zoro_no: G8662374, mongo_id: 65bbe8c222d7a989a99148a7

Web Price
$1,752.49 / each
Qty

Product Details

CC003A
India
Continuous
Continuous
132M
16.2/8.1 A
5 1/2 hp
60/50 Hz
F
Yes
4.0
423 mm
1 yr
104 Degrees F
General Application
Ball
3-Phase
Totally Enclosed Fan-Cooled
Cast Iron
Horizontal
Rigid Base
1.15
CW/CCW
None
1,180
N
1
91 %
503 mm
1
Three
1,101-1,200
38 mm
80 mm
CE, UL Recognized
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
189.6 lb
