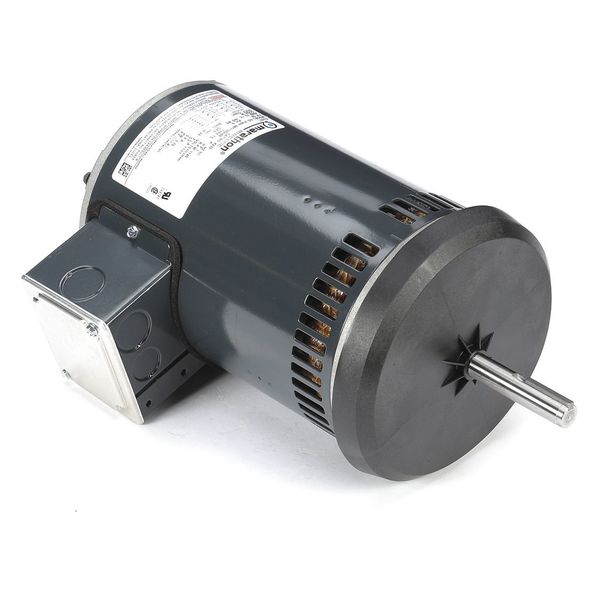

Home / Motor, 1 HP, OEM Replacement Brand: Carrier, Marathon Replacement For: HD52VE214, 56T11D33

Motor, 1 HP, OEM Replacement Brand: Carrier, Marathon Replacement For: HD52VE214, 56T11D33

SKU
Brand Marathon Motors
Categories
Description Direct Drive Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 200-230/460V AC, Full Load Amps 6.6-6.0/3.0 A, 56 Frame, OEM Replacement Brand Carrier, Marathon, Replacement For 56T11D33, HD52VE214, Usable @ 208V Yes, Usable @ 200V Yes, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 70 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over
graingerSKU: 20JP50, mscSKU: , zoro_no: G6086132, mongo_id: 65bbe92322d7a989a99384d6

Web Price

$714.99 / each

Product Details

Application Fans and Blowers

Body Dia. 7-1/16

Capacitor Required No

Conduit Box Location Exterior

Conduit Box Position F1

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 56

Full Load Amps 6.6-6.0/3.0A

HP_ 1 HP

Hz_ 60 Hz

Ins. Class B

Length Less Shaft 12 7/8 in

Manufacturers Warranty Length 1 yr.

Max. Ambient Temp. 40 Degrees C

Motor Application OEM Replacement

Motor Bearings Ball

Motor Design Squirrel Cage Induction Run

Motor Enclosure Design Drip Proof Air Over

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Round Belly Band

Motor Service Factor 1.00

Motor Shaft Design T

Motor Shaft Rotation Reversible

Motor Sub Application Direct Drive Fan/Blower

Motor Thermal Protection Automatic

Nameplate RPM 1140 rpm

No. of Speeds 1

Number of Shafts 1

OEM Replacement Brand Carrier, Marathon

Overall Length 14.8

Package Quantity 1

Phase 3

Replacement For 56T11D33, HD52VE214

Rotation CW/CCW

RPM Range 0-1000

Shaft Dia. 5/8

Shaft Length 1.88

Standards UL Recognized (E6312), CSA Certified (LR2025)

Stud Size #10-32

Usable @ 200V Yes

Usable @ 208V Yes

Voltage 200-230/460V

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC, 208-230/460V AC, 208V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC

Weight 36 lb
