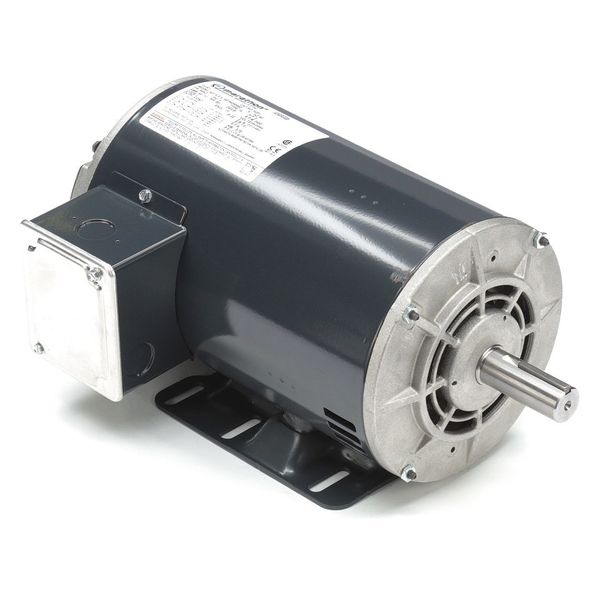

OEM Replacement Motor, 3-Ph, Dripproof, 5HP

SKU
Brand Marathon Motors
Categories
Description Direct Drive Motor, Three Phase, Motor Design 3-Phase, 5 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 13.5-12.4/6.2 A, 56HZ Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Dripproof, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
graingerSKU: 20JP46, mscSKU: , zoro_no: G6171331, mongo_id: 65bbea5822d7a989a99ab366

Web Price

$996.24 / each

Product Details

Application Fans and Blowers

Body Dia. 6-1/2

Capacitor Required No

Conduit Box Location Exterior

Conduit Box Position F1

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 56HZ

Full Load Amps 13.5-12.4/6.2A

HP_ 5 HP

Hz_ 60 Hz

Ins. Class B

Length Less Shaft 11 3/16 in

Manufacturers Warranty Length 1 yr.

Max. Ambient Temp. 40 Degrees C

Motor Application OEM Replacement

Motor Bearings Ball

Motor Design Squirrel Cage Induction Run

Motor Enclosure Design Drip Proof

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.00

Motor Shaft Design NEMA 145T

Motor Shaft Rotation Reversible

Motor Sub Application Direct Drive Fan/Blower

Motor Thermal Protection Automatic

Nameplate RPM 3450 rpm

No. of Speeds 1

Number of Shafts 1

Overall Length 13.49

Package Quantity 1

Phase 3

Rotation CW/CCW

RPM Range 3001-3600

Shaft Dia. 7/8

Shaft Length 2-1/4

Standards UL Recognized (E6312), CSA Certified (LR2025)

Stud Size #10-32

Usable @ 200V No

Usable @ 208V Yes

Voltage 208-230/460V

Voltage Compatibility 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC

Weight 50 lb
