Home / Oil Burner Motor, 1/5HP, 3450 rpm, 115/230V

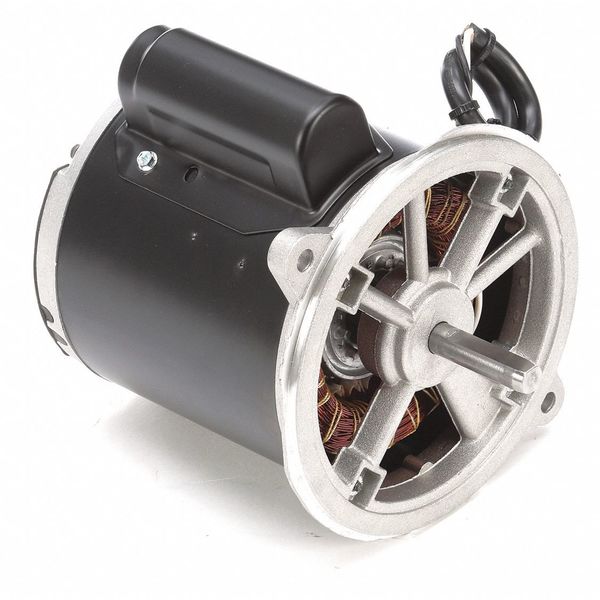

Oil Burner Motor, 1/5HP, 3450 rpm, 115/230V

Oil Burner Motor, 1/5HP, 3450 rpm, 115/230V

  • Marathon Motors
  • HVAC Motor, Single Phase, Motor Design Capacitor-Start, 1/5 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115/230V AC, 3.0/1.50 Full Load Amps, 48N Frame, Output Watts 150 W, 60 Hz, Usable @ 208V Yes, Usable @ 200V Yes, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Face, Motor Frame Material Steel

    graingerSKU: 454X83, mscSKU: , zoro_no: G4780568, mongo_id: 65bbe65b3aaddbd5a9023c8d

Web Price
$251.24 / each

Product Details

40 Degrees C
6 3/4 in
Yes
Exterior
F1
Mexico
Continuous
NEMA N or M Flange Direct, Two Bolt
48N
3.0/1.50
1/5
60
B
10 in
6 5/8 in
1 yr
40 Degrees C
HVAC/R
Ball
Capacitor-Start
Open Air-Over
Aluminum
Ventilated
Steel
Horizontal or Vertical Shaft Up
Face
1
Flat
CW/CCW
Oil Burner
Manual
3,450
1
61 %
150 W
8 3/8 in
1
Single
No
3,001-3,600
1/2 in
1 3/4 in
CSA Certified, UL Recognized
Yes
Yes
115/230V AC
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
14 lb
