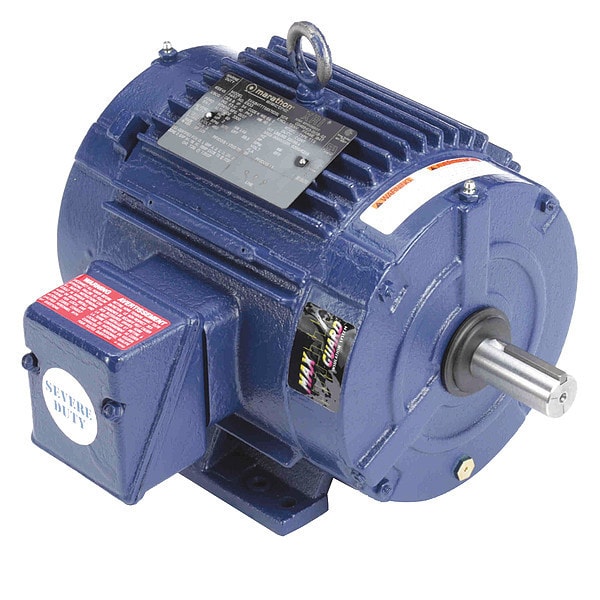

Severe Duty Motor, Three Phase, 7 1/2 HP, 3,525 Nameplate RPM, 460V AC, 213T Frame

SKU
Brand Marathon Motors
Categories
Description Severe Duty Motor, Three Phase, Motor Design 3-Phase, 7 1/2 hp HP, Nameplate RPM 3,525, No. of Speeds 1, Voltage 460V AC, Full Load Amps 8.9 A, 213T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
graingerSKU: 482P93, mscSKU: , zoro_no: G6541153, mongo_id: 65bbe90e22d7a989a9931422

Web Price

$1,811.24 / each

Product Details

CC Number CC003A

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 213T

Full Load Amps 8.9 A

Green Certification or Other Recognition NEMA Premium(R) Rated

HP_ 7 1/2

Hz_ 60 Hz

Ins. Class F

Inverter Rated Yes

Length Less Shaft 14 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 104 Degrees F

Motor Application General Application

Motor Bearings Ball

Motor Design 3-Phase

Motor Enclosure Design Totally Enclosed Nonventilated

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1.15

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 3,525

No. of Speeds 1

Nominal Efficiency 91 %

Overall Length 17 1/2 in

Package Quantity 1

Phase Three

RPM Group 3001-3600

RPM Range 3,001-3,600

Shaft Dia. 1 3/8 in

Shaft Length 3 1/2 in

Standards CE Listed, CSA (LR2025), UL (E49747)

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
