Home / Severe Duty Mtr, 3-Ph, TENV, 1 HP

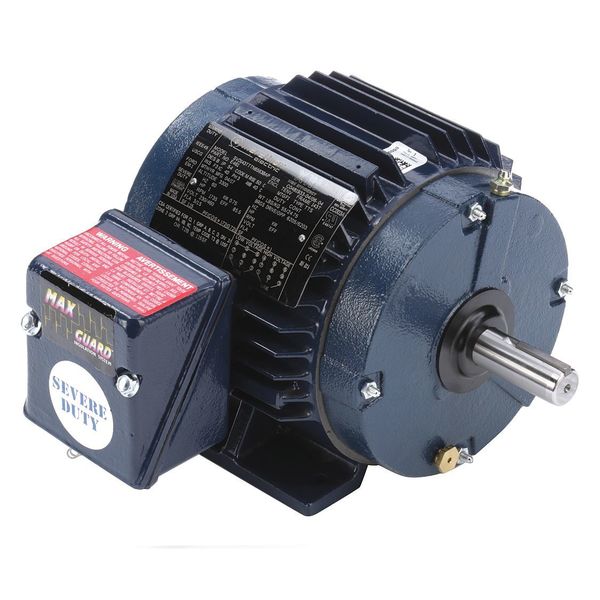

Severe Duty Mtr, 3-Ph, TENV, 1 HP

Severe Duty Mtr, 3-Ph, TENV, 1 HP

  • Marathon Motors
  • Severe Duty Motor, Three Phase, Motor Design 3-Phase, 1 hp HP, Nameplate RPM 1,735, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 143T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Inverter Rated Yes

    graingerSKU: null, mscSKU: null, zoro_no: G5656393, mongo_id: 65bbe6f13aaddbd5a90644a6

Web Price
$779.99 / each

Product Details

CC003A
Mexico
Continuous
Continuous
143T
Cast Iron
3.0/1.5 A
NEMA Premium(R) Rated
1 C,D / 2 F,G
1 hp
60 Hz
Max Guard Insulation
F
Yes
9 to 6
7 7/8 in
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Nonventilated
Cast Iron
Rigid Base
1.15
Keyed
CW/CCW
None
1,735
B
1
86.5 %
10 7/16 in
1
Three
1701-1800
1,701-1,800
7/8 in
2 9/16 in
CE, CSA, UL Recognized
T2B
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
55 lb
