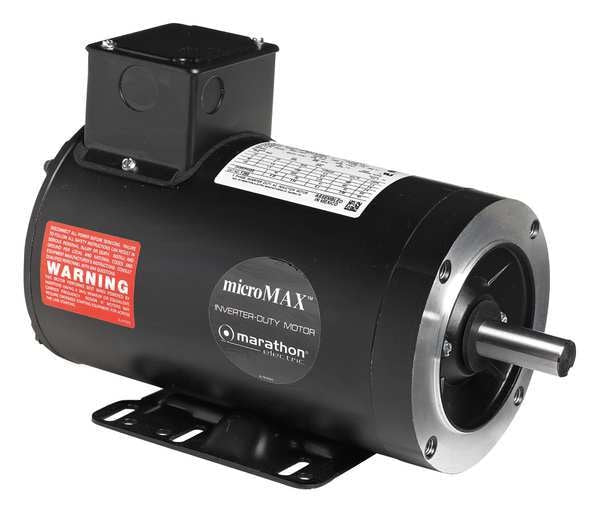

Vector Motor, 1.0 lb-ft, 1/3 HP, 230 V

SKU
Brand Marathon Motors
Categories
Description Vector Motor, Three Phase, Motor Design 3-Phase, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230V AC, Full Load Amps 1.2 A, 56C Frame, Torque 1 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
graingerSKU: 5THW7, mscSKU: , zoro_no: G1915252, mongo_id: 65bbe7843aaddbd5a909da3f

Web Price

$359.99 / each

Qty

Product Details

Ambient Temperature 40 Degrees C

Base Rigid

Conduit Box Location Exterior

Conduit Box Position F1

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Encoder Acceptable No

Finish Black

Frame 56C

Frame Material Rolled steel

Full Load Amps 1.2 A

HP_ 1/3

Hz_ 60 Hz

Ins. Class H

Insulation Feature Patented MAX GUARD

Length Less Shaft 7 7/8 in

Manufacturers Warranty Length 3 Years

Max. Ambient Temp. 40 Degrees C

Max. Operating Frequency 120 Hz

Max. Speed 5,400 RPM

Motor Application Crane

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group Standard Efficient

Motor Enclosure Design Totally Enclosed Nonventilated

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 1,725

NEMA Design A

No. of Speeds 1

Nominal Efficiency 74 %

Overall Length 9 15/16 in

Package Quantity 1

Phase Three

RPM Range 1,701-1,800

Shaft Dia. 5/8 in

Shaft Length 2 1/16 in

Speed Range 1,000:1

Standards CE, UL Recognized

Torque 1 ft-lb

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Warranty 3 yr

Weight 17 lb
