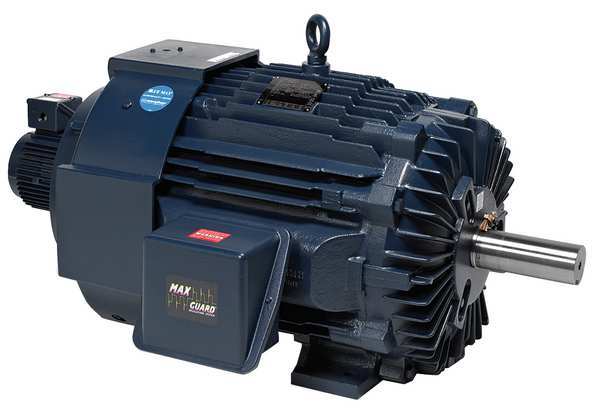

Vector Motor, 3-Phase, 125HP, 460V

SKU
Brand Marathon Motors
Categories
Description Vector Motor, Three Phase, Motor Design 3-Phase, 125 HP, Nameplate RPM 1,785, No. of Speeds 1, Voltage 460V AC, Full Load Amps 138 A, 444T Frame, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled
graingerSKU: 26VU14, mscSKU: , zoro_no: G9922805, mongo_id: 65bbe6d03aaddbd5a90560ce

Web Price

$47,036.53 / each

Product Details

Ambient Temperature 40 Degrees C

Base Rigid

Conduit Box Location Exterior

Conduit Box Position F1, F2

Country of Origin (subject to change) United States

Duty Continuous

Duty Cycle Continuous

Encoder Acceptable Yes

Encoder Shaft 1 in x 1-3/4 in

Encoder Shaft Dimensions 1 in x 1 3/4 in

Finish Enamel

Frame 444T

Frame Material Cast Iron

Full Load Amps 138 A

HP_ 125

Hz_ 60 Hz

Ins. Class H

Insulation Feature Class F

Manufacturers Warranty Length 3 yr

Max. Ambient Temp. 40 Degrees C

Max. Operating Frequency 90 Hz

Max. Speed 1,800 RPM

Motor Application Crane

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group Energy Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Rigid Base

Motor Service Factor 1

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection T-Stat

Nameplate RPM 1,785

NEMA Design B

No. of Speeds 1

Nominal Efficiency 95 %

Overall Length 54 7/8 in

Package Quantity 1

Phase Three

RPM Range 1,701-1,800

Shaft Dia. 3 3/8 in

Shaft Length 8 3/4 in

Speed Range 2,000:1

Standards CE, CSA, UL Recognized

Usable @ 200V No

Usable @ 208V No

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Warranty 3 yr

Weight 2,430 lb
