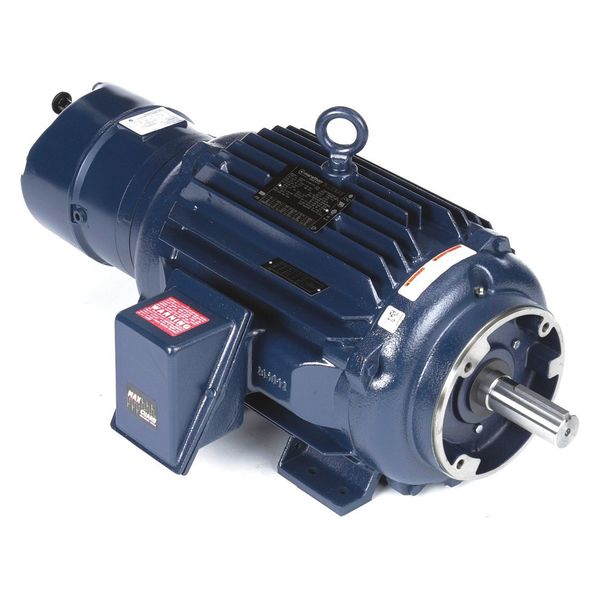

Vector Motor, 3-Phase, 20HP, 230/460V

Vector Motor, 3-Phase, 20HP, 230/460V

  • Marathon Motors
  • Vector Motor, Three Phase, Motor Design 3-Phase, 20 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 52.0/26.0 A, 256TC Frame, Torque 105 ft-lb, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW

    graingerSKU: 26VT71, mscSKU: , zoro_no: G9923085, mongo_id: 65bbe7f522d7a989a98ccf68

Web Price
$15,622.49 / each

Product Details

40 Degrees C
Rigid
CC003A
Exterior
F1, F2
United States
Continuous
Continuous
Yes
1-3/8 in x 1-15/16 in
1 3/8 in x 1 15/16 in
Enamel
256TC
Cast Iron
52.0/26.0 A
NEMA Premium(R) Rated
20
60 Hz
140% Rated Spring-Set Self-Adjusting Nema 2 Disk Brake
F
Class F
3 yr
40 Degrees C
120 Hz
1,800 RPM
Crane
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Nonventilated
Cast Iron
Horizontal
Rigid Base
1
Keyed
CW/CCW
None
1,770
A
1
93.6 %
35 5/16 in
1
Three
1,701-1,800
1 5/8 in
3 3/4 in
2,000:1
CE, CSA, UL Recognized
105 ft-lb
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
3 yr
485 lb
