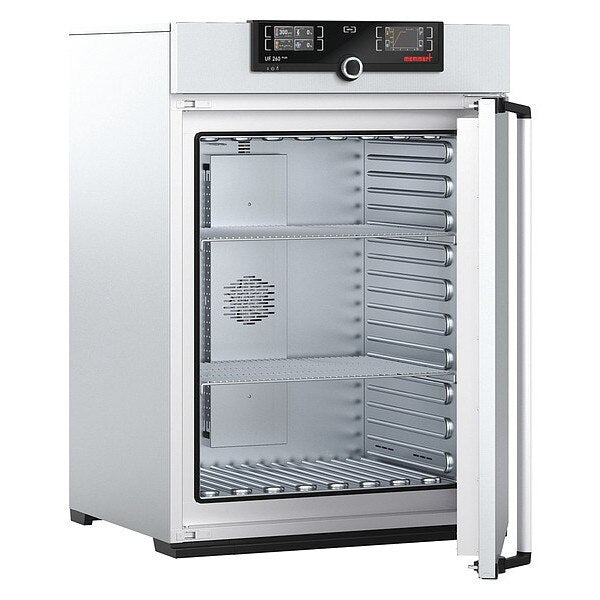

Home / Program Unrvsl Oven, 25.2W42x31.5x19.7 in

Program Unrvsl Oven, 25.2W42x31.5x19.7 in

SKU
Brand Memmert
Categories
Description Programmable Universal Oven, Convection Type Forced Air, Temp. Range (C) At least 10 Degrees C above ambient up to +300 Degrees C, Overall Height 46.6 in, Overall Width 32 in, Overall Depth 27 in, Temp. Accuracy up to 99.9 Degrees +/-0.1 Degrees C / from 100 Degrees +/-0.5 Degrees C, Chamber Height 31.5 in, Chamber Width 25.2 in, Chamber Depth 19.7 in, Amps 15.6 A, Hz 50/60, Voltage 115 V, Watts 1,800 W, Capacity (Cu.-Ft.) 9, Capacity (ML) 256,000, Programmable Yes
graingerSKU: 20H911, mscSKU: , zoro_no: G904390389, mongo_id: 65bbe93c22d7a989a9941c48

Web Price

$13,068.74 / each

Qty

Product Details

Amps 15.6 A

Capacity (Cu.-Ft.) 3

Capacity (ML) 256,000

Chamber Depth 19.7 in

Chamber Height 31.5 in

Chamber Material Stainless Steel

Chamber Width 25.2 in

Convection Type Forced Air

Country of Origin (subject to change) Germany

Door Material Stainless Steel

Housing Material Stainless steel

Hz_ 50/60

Includes Atmocontrol Manual, Atmocontrol Software, Calibration Certificate, Operating Manual, Power Cord, Stainless Steel Grid Shelf

Inside Usable Dimensions 15.8H x 15.8W x 15.9D

Manufacturers Warranty Length 3 yr

Material ASTM 304 Stainless Steel

Number of Doors 1

Number of Shelves 2

Overall Depth 27 in

Overall Dimensions 46.6H x 32W x 27D

Overall Height 46.6 in

Overall Width 32 in

Package Quantity 1

Power Consumption 2200W

Power Requirement 115V, 50/60 Hz

Preheat Time 33 to 104 min.

Programmable Yes

Shelf Capacity 44 lb

Special Features Color Touch Screen Controller, Double Over Temperature Protection, Ethernet Interface for Reading Out Protocol Log, Internal Data Logger with A Storage Capacity of At Least 10 Years, Stainless Steel Housing and Exterior, User Adjustable Calibration Values

Standards CE, GS, UL, VDE

Temp. Accuracy up to 99.9 Degrees +/-0.1 Degrees C / from 100 Degrees +/-0.5 Degrees C

Temp. Range Ambient +10C to 300C

Temp. Range (C) At least 10 Degrees C above ambient up to +300 Degrees C

Temp. Recovery Time 14 to 27 min.

Temp. Uniformity +/-1.8 Degrees C

Thermostat PT 100 Sensor

Voltage 115 V

Volume 9 cu ft

Watts 1,800 W
