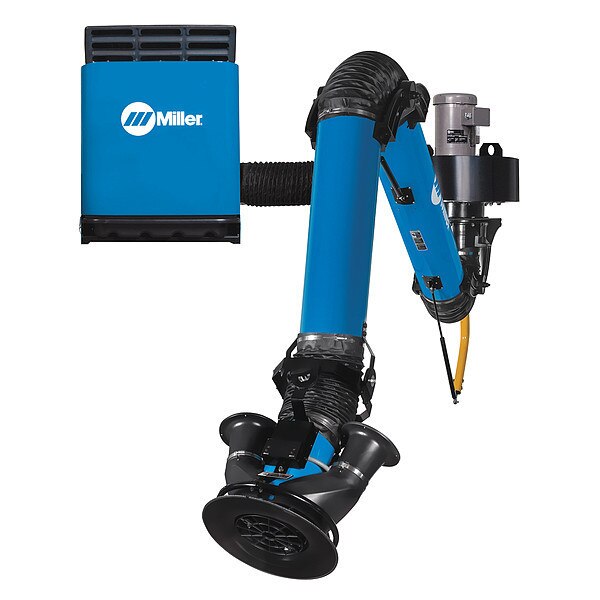

Stationary Fume Extractor, 15 MERV, 60 Hz, Air Flow (CFM): 875

SKU
Brand Miller Electric
Categories
Description Stationary Fume Extractor, Maximum Air Flow 875 cfm, Extraction Arm Length (Maximum) 10 ft, Filter Efficiency 95 Percent, Sound Level 80 dB, Filter Area 490 sq ft, Filter MERV Rating 16, Input Voltage 110/115/120V AC, Motor Horsepower (Maximum) 1 hp, Series FILTAIR(R) SWX, Connects to Ductwork Duct, Current 12 A, Extraction Arm Adjustability 360 Degrees Rotation, Flexible Duct
graingerSKU: 494D83, mscSKU: , zoro_no: G7661654, mongo_id: 65bbe93c22d7a989a99413b8

Web Price

$28,028.74 / each

Qty

Product Details

Air Flow (CFM) 875

Application Fabrication, Fixed Welding Cells/Stations, Manufacturing, Schools/Training Facilities

Connects to Ductwork Duct

Country of Origin (subject to change) United States

Current 12 A

Depth (In.) 33 in

Extraction Arm Adjustability 360 Degrees Rotation, Flexible Duct

Extraction Arm Length (Maximum) 10 ft

Features Class Leading Suction Power, Dual Fan Capture Zone Control, Easy to Operate Zoneflow Arm, Filtek Swx System Arm Add-On Packages, Less Arm Movement, Miller Filtek Xl Filter Technology, One Minute Cleaning Cycle, Self-Cleaning Filter Model, Zoneflow Technology

Filter Area 490 sq ft

Filter Efficiency 95 %

Filter Media Cellulose

Filter MERV Rating 16

Filter Type Self-Cleaning

Frequency 60 Hz

Height (In.) 33 in

Housing Color Black, Blue

Housing Depth 33 in

Housing Height 33 in

Housing Width 33 in

Hz_ 60

Includes 115 V Blower, 115 V Cleaning Control Box, 115 V On/Off Control Box, Filtek Xl Filter, Flexible Duct (7 X 37 In), Mounting Bracket for Blower/Arm, Swx Self-Cleaning Filter Cabinet, Zoneflow Motor Control Box

Includes Extraction Arm Yes

Input (Amps) 12 A

Input Voltage 110/115/120V AC

Input Voltage (Nominal) 120V

Maximum Air Flow 875 cfm

MERV 15

Motor Horsepower (Maximum) 1 hp

Motor HP 1 hp

Number of Extraction Arms 1

Package Quantity 1

Phase Single

Process Fabrication Shops, Manufacturing, Welding
