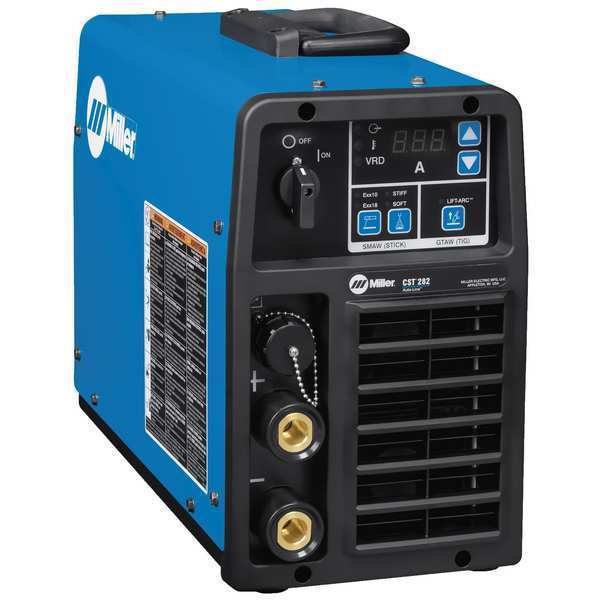

Stick Welder

SKU
Brand Miller Electric
Categories
Description Stick Welder, Input Frequency 50/60 Hz, Input Voltage 208V, 220/230/240V, 380/400/440V, 460/480V, 575V, Phase Single-/Three-Phase, Polarity DC, Model 907770, Stick Welding Maximum Output Current 280 A, TIG Welding Maximum Output Current 280 A, Cable Connection Type Tweco-Style, Remote Connection Type 14-Pin (Miller), Stick Welding Output @ Duty Cycle 150 A @ 26 V, 100 Percent (1-Phase), 200 A @ 28 V, 100 Percent (3-Phase), 200 A @ 28 V, 50 Percent (1-Phase), 280 A @ 31.2 V, 35 Percent (3-Phase)
graingerSKU: , mscSKU: , zoro_no: G100719748, mongo_id: 65bbe9cb22d7a989a997a8af

Web Price

$7,904.99 / each

Qty

Product Details

Amps DC 280 A

Application Construction, Education and Training, High Purity Processing, Infrastructure, Maintenance and Repair - Field Operations, Maintenance and Repair - in Plant, Mechanical Contracting, Shipbuilding

brand-mfr model MILLER ELECTRIC - 907770

Cable Connection Type Tweco-Style

Color Blue

Country of Origin (subject to change) United States

Duty Cycle 35%

Effective Input Current 12 A @ 440V AC (Three-Phase), 12.7 A @ 460V AC (Three-Phase), 13.5 A @ 400V AC (Three-Phase), 17.5 A @ 460V AC (Three-Phase), 18 A @ 440V AC (Three-Phase), 19.8 A @ 400V AC (Three-Phase), 22.8 A @ 230V AC (Three-Phase), 23.5 A @ 208V AC (Three-Phase), 34 A @ 230V AC (Three-Phase), 36 A @ 208V AC (Three-Phase)

Features Adaptive Hot Start(TM), Auto-Line(TM) Technology, Lift-Arc(TM), Portable, Simple and Accurate Interface Digital Meter and Push-Button Control, Superior Stick Performance, Universal Connector System, Voltage Reducing Device

Hz_ 50/60

Includes 6 ft Power Cable

Input (Amps) 33.7 A

Input Frequency 50/60 Hz

Input Voltage 208V, 220/230/240V, 380/400/440V, 460/480V, 575V

Input Voltage (Nominal) 208V, 240V, 400V, 480V, 575V

Max. Amperage Range (Stick) 150 A - 300 A

Model 907770

OCV 103 V DC

Open Circuit Voltage 103 V DC

Output Range (Amps) 5 to 280 A; 30 to 280 A

Overall Depth 18.5 in

Overall Depth (In.) 18 1/2 in

Overall Height 13.5 in

Overall Height (In.) 13 1/2 in

Overall Width 8 in

Overall Width (In.) 8 in

Package Quantity 1

Phase Single, Three

Plug Type Bare Leads

Polarity DC

Power Cord Included Yes

Power Cord Length 6 ft

Process Stick Welding (SMAW), TIG Welding (GTAW)

Promotion Restriction Not eligible for promotion

Rated Output Three Phase: 280A 31.2V @35% Single Phase: 200A 28V @50%

Rated Output at Duty Cycle (Stick) 150 A @ 100%, 200 A @ 100%, 200 A @ 50%, 275 A @ 35%

Remote Connection Type 14-Pin (Miller)

Stick Welding Maximum Output Current 280 A

Stick Welding Minimum Output Current 5 A

Stick Welding Output @ Duty Cycle 150 A @ 26 V, 100% (1-Phase), 200 A @ 28 V, 100% (3-Phase), 200 A @ 28 V, 50% (1-Phase), 280 A @ 31.2 V, 35% (3-Phase)

TIG Arc Start Feature Lift Arc Start

TIG Welding Maximum Output Current 280 A

TIG Welding Minimum Output Current 5 A

TIG Welding Output @ Duty Cycle 150 A @ 16 V, 100% (1-Phase), 200 A @ 18 V, 100% (3-Phase), 200 A @ 18 V, 50% (1-Phase), 280 A @ 21.2 V, 35% (3-Phase)

Weight 34.6 lb

Welder Kit Type Power Source Only

Welder Type Power Source Only

Welding Amp Range High Three Phase: 280 Single Phase: 200

Welding Amp Range Low Three Phase: 5 Single Phase: 5

Welding Mode CC

Welding Processes Stick, TIG

Welding Range (Amps DC) 30 to 280 A; 5 to 280 A

Work Cable Length Not Applicable
