Home / Stick Welder, Maxstar 161 S Series, 240

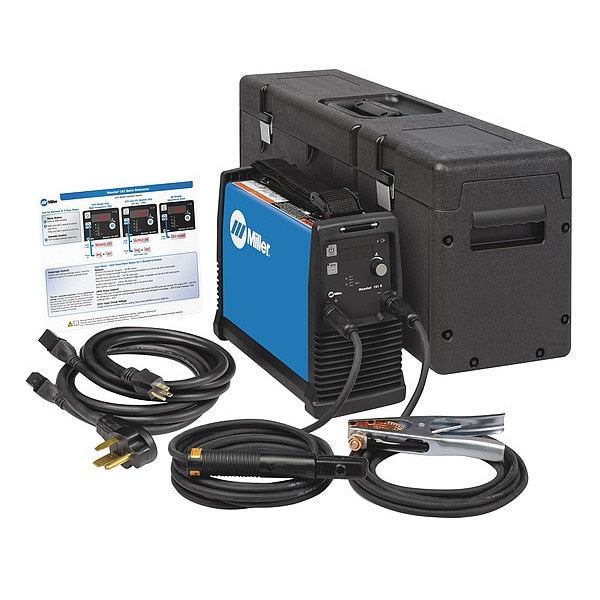

Stick Welder, Maxstar 161 S Series, 240

SKU
Brand Miller Electric
Categories
Description Stick Welder, Electrode Cable Length 13 ft, For Material Type Stainless Steel, Steel, Input Frequency 50/60 Hz, Input Voltage 110/115/120V AC, 220/230/240V AC, Phase Single-Phase, Polarity DC, Model 907709001, Stick Welding Maximum Output Current 160 A, Cable Connection Type Dinse-Style, Remote Connection Type 6-Pin (Miller)
graingerSKU: null, mscSKU: null, zoro_no: G7111889, mongo_id: 65bbe5e33aaddbd5a9ff2ffc

Web Price

$2,699.99 / each

Qty

Product Details

Amps DC 160

Application Build Up Welding, Farm, For Home, Light Fabrication, Repair and Maintenance, Shop

brand-mfr model MILLER ELECTRIC - 907709001

Cable Connection Type Dinse-Style

Color Blue

Country of Origin (subject to change) United States

Duty Cycle 100%, 160A @ 26.4V, 20% / 110A @ 24.4V

Effective Input Current 14.31 A @ 240V AC (Single-Phase), 14.68 A @ 120V AC (Single-Phase), 22.55 A @ 240V AC (Single-Phase), 23.16 A @ 120V AC (Single-Phase)

Electrode Cable Length 13 ft

Features Auto-Line Power Management Technology, Fan-On-Demand(TM), Hot Start, Single Amperage Range, Superior Stick Arc Performance, Thermal Overload Protection

For Material Type Stainless Steel, Steel

Hz_ 50/60

Includes 10 ft (3 m) work clamp with 25 mm Dinse-style connector, 13 ft (4 m) stick electrode holder with 25 mm Dinse-style connector, 6.5 ft (2 m) primary cords for 120 V and 240 V, Adjustable handle/shoulder strap, Protective Miller X-Case(TM) (301429)

Input (Amps) 20

Input Frequency 50/60 Hz

Input Voltage 120V/240V

Input Voltage (Nominal) 120V, 240V

Kit Includes Case, Stick Electrode Holder with Cable, Work Cable with Clamp

Max. Amperage Range (Stick) 150 A - 300 A

Model 907709001

OCV 400 VDC

Open Circuit Voltage 48 V DC

Output Amps @100% Duty Cycle 110 A

Output Amps @20% Duty Cycle 160A

Output Range (Amps) 20 to 160

Overall Depth 13.5 in

Overall Depth (In.) 13 1/2 in

Overall Height 10.3 in

Overall Height (In.) 10 19/64 in

Overall Width 5.61 in

Overall Width (In.) 5 39/64 in

Package Quantity 1

Phase Single-Phase

Plug Type 5-15P

Polarity DC

Power Cord Length 6 1/2 ft

Process Stick Welding (SMAW)

Promotion Restriction Not eligible for promotion

Rated Output DC: 110A/24.4V/30%

Rated Output at Duty Cycle (Stick) 110 A @ 100%, 160 A @ 60%, 60 A @ 100%, 90 A @ 30%

Remote Connection Type 6-Pin (Miller)

Series Maxstar 161 S

Standards CSA

Stick Welding Maximum Output Current 160 A

Stick Welding Minimum Output Current 20 A

Stick Welding Output @ Duty Cycle 110 A @ 24.4 V @ 100% (240 V), 160 A @ 26.4 V, 60% (240 V), 60 A @ 22.4 V, 100% (120 V), 90 A @ 23.6 V, 30 % (120 V)

Weight 13 lb

Welder Kit Type Stick Package w/Case

Welder Type Stick Package w/Case

Welding Amp Range High 20 to 160

Welding Amp Range Low 20 to 90

Welding Mode CC

Welding Processes Stick Welding (SMAW)

Welding Range (Amps DC) 20-160

Work Cable Length 10 ft
