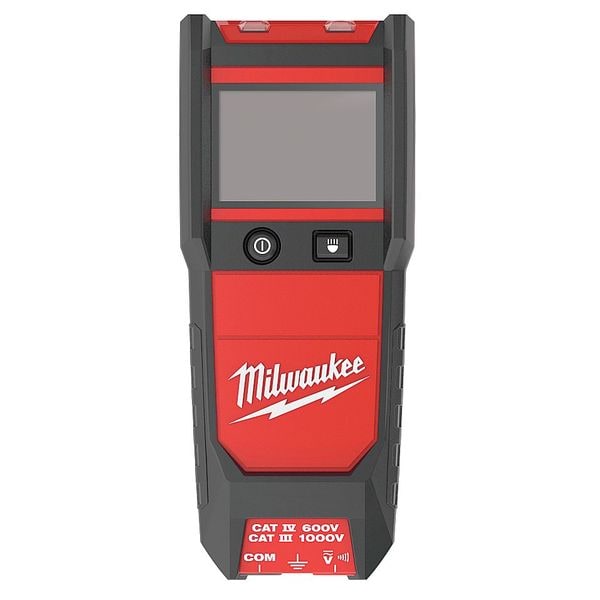

Auto Voltage/Continuity Tester

SKU
Brand Milwaukee Tool
Categories
Description Voltage and Continuity Tester, Alert Type Digital Display, Light, Sound, Built-In Flashlight Yes, CAT Safety Rating CAT IV 600V, Cable Length 4.58 ft, Display Type Digital, Includes Belt Clip, Test Lead Set, Maximum AC Voltage Measured 600 V, Maximum DC Voltage Measured 600 V, Non-Contact No, Test Connection Type Probe Tip, Testing Functions Continuity
graingerSKU: 20LN63, mscSKU: 68719459, zoro_no: G8549353, mongo_id: 65bbe8789a749db822793ef4

Web Price

$74.96 / each

Qty

Product Details

AC Voltage Range 5 to 600

Alert Type Audible, Visual

Audible Continuity Yes

Auto Power Off Yes

Auto Ranging Yes

Basic DC Accuracy +/-3% + 5 Digits

Battery Chemistry Alkaline

Battery Size AAA

Battery Type AAA

Built-In Flashlight Yes

Cable Length 4.58 ft

CAT Safety Rating CAT IV 600V

Country of Origin (subject to change) China

DC Voltage Accuracy +/-3.00% +5 digits

DC Voltage Range 2 to 600

Display LCD

Display Screen Type LCD

Display Type Digital

Features Auto-Function and Auto-Ranging for Simple Use, Belt Clip Eliminates Holding the Meter While You Work, Built-In Test Lead Holders for Quick Storage, Dual LED and Audible Indicators for Fast and Convenient Test Results, LED Worklight for Low-Lit Areas, Replaceable Test Leads for Greater Flexibility, Rugged Over-Molding

Flashlight Yes

Includes Belt Clip, Test Lead Set

Includes Batteries Yes

Manufacturer Warranty Length 5 yr

Manufacturers Warranty Length 5 yr

Maximum Operating Temperature 122 Degrees F

Maximum AC Voltage Measured 600 V

Maximum DC Voltage Measured 600 V

Maximum Operating Temperature 122 Degrees F

Minimum AC Voltage Measured 5 V

Minimum DC Voltage Measured 200 V

Minimum Operating Temperature 32 Degrees F

Non-Contact No

Number of Batteries Required 2

Package Quantity 1

Power Source Battery

Product Type Continuity Testers

Product Type_Filter 2212-20

Promotion Restriction Not eligible for promotion

Resistance No

Safety Rating Cat IV 600V

Standards Measurement Category IV, 600V, Pollution Degree II, EMC EN 61326-1, UL/CSA/IEC/EN 61010-031 First Edition +A1 (Probes), UL/CSA/IEC/EN 61010-1 Third Edition and IEC/EN 61010-2-033 First Edition (Meter)

Test Connection Type Probe Tip

Tester Type Voltage and Continuity Tester

Testing Functions Continuity

Tool Height 10 in

Tool Length 14.6 in

Tool Width 13.4 in
