Home / Digital Multimeter

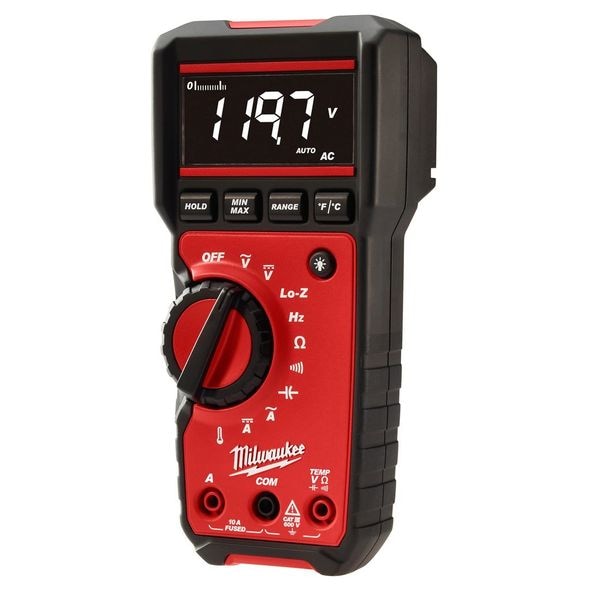

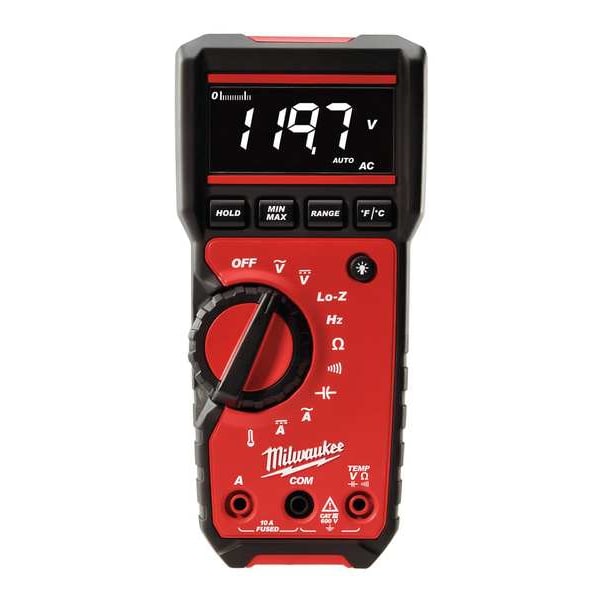

Digital Multimeter

SKU
Brand Milwaukee Tool
Categories
Description Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-2 Percent, Basic DC Voltage Accuracy +/-0.50 Percent + 2 Digits, Data Hold Yes, Basic DC Current Accuracy +/-1.5 Percent, Instrument Safety Rating CAT III 600V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 6,000
graingerSKU: 5MLK1, mscSKU: 45877982, zoro_no: G4586102, mongo_id: 65bbe89c22d7a989a9906141

Web Price

$323.75 / each

Qty

Product Details

AC Current Measurement Resolution Not Applicable

AC Response TRMS

AC Response Calculation TRMS

AC Voltage Measurement Resolution Not Applicable

Audible Continuity Yes

Auto Power Off Yes

Auto Ranging Yes

Bar Graph Yes

Bar Graph Included Yes

Basic AC Current Accuracy +/-1.5%

Basic AC Voltage Accuracy +/-2%

Basic DC Accuracy +/-0.50% of Reading +2 Digits

Basic DC Current Accuracy +/-1.5%

Basic DC Voltage Accuracy +/-0.50% + 2 Digits

Batteries Included Yes

Battery Access Yes

Battery Chemistry Alkaline

Battery Size AA

Battery Type AA Alkaline

Bluetooth Compatible No

Calibration Certificate NIST

Calibration Certificate Included Yes

Capacitance Measurement Accuracy +/-1.90%

Capacitance Measurement Resolution Not Applicable

Capacitance Range 10 pF to 1000 uF

Computer Interface Connection Type None

Country of Origin (subject to change) United States

Current Leakage Testing No

Data Hold Yes

Data Logging No

DC Current Measurement Resolution Not Applicable

DC Voltage Measurement Resolution Not Applicable

Depth 6.5 in

Display High Contrast White On Black LCD

Display Type LCD

Dustproof No

Frequency Measurement Accuracy +/-0.10%

Frequency Measurement Resolution Not Applicable

Fuse Access Yes

Includes (1) Dual Banana Thermocouple, (1) Electrical Test Lead Set, (1) Manual, (2) AA Batteries

Instrument Counts 6,000

Instrument Frequency Counter Range 10 Hz to 50 kHz

Instrument Safety Rating CAT III 600V

Intrinsically Safe No

IP Rating IP54

Low Impedance Yes

Manufacturers Warranty Length 5 yr

Max. AC Amps 10

Max. AC Volts 600

Max. DC Amps 10

Max. DC Volts 600

Max. Ohms 40 megohm

Maximum AC Current Measurement 10 A

Maximum AC Voltage Measurement 600 V

Maximum Capacitance Measurement 1,000 uF

Maximum DC Current Measurement 10 A

Maximum DC Voltage Measurement 600 V

Maximum Frequency Measurement 50 kHz

Maximum Operating Temperature 122 Degrees F

Maximum Resistance Measurement 40 megaohm

Maximum Storage Temperature 140 Degrees F

Maximum Temperature Measurement 752 Degrees F

Min-Max-Avg Button Included Yes

Min./Max. Memory yes

Minimum AC Current Measurement 0 A

Minimum AC Voltage Measurement 0 V

Minimum Capacitance Measurement 10 pF

Minimum DC Current Measurement 0 A

Minimum DC Voltage Measurement 0 V

Minimum Frequency Measurement 10 Hz

Minimum Operating Temperature 14 Degrees F

Minimum Storage Temperature -40 Degrees F

Minimum Temperature Measurement -40 Degrees F

Minimum/Maximum Memory Yes

Multimeter Features Standard

Multimeter Style Full Size - Basic Features

Package Quantity 1

Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K)

Promotion Restriction Not eligible for promotion

Removable Screen No

Resistance Measurement Accuracy +/-1.5%

Resistance Measurement Resolution Not Applicable

Series MILWAUKEE (R) 2217-20

Special Features Auto Range to Millivolts and Milliamp Ranges, Contact Temperature Measurement from -40 to 752 Degrees F, Current Measurement to 10A AC/DC, Frequency Measurements from 10Hz to 50KHz, High Contrast, White on Black Display with Backlight for Easy Reading, Lo-Z Measurement to Eliminate Ghost Voltage, Rugged Over-Molding Increases Durability and User Grip, True-RMS for Accurate Measurement in All Applications, Wide Voltage Range to 600 Volts AC/DC

Standards CE, cULus, EMC EN61326-1, EN61010-031 (Probes), EN61010-1, IEC/EN61010-1 2nd Edition for measurement Category III, 600 V, Pollution Degree 2, UL 61010-031 (Probes), UL 61010-1

Style Full Size

Temp. Range -40 Degrees to 752 Degrees F

Temperature Measurement Accuracy +/-1.00%

Temperature Measurement Resolution Not Applicable

Thermal Imaging No

Waterproof No
