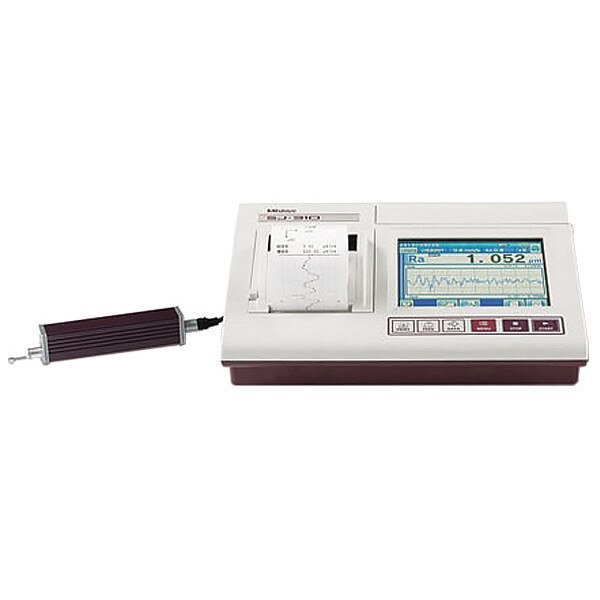

Mitutoyo 178-571-02A

SKU
Brand Mitutoyo
Categories
Description Portable Surface Roughness Tester with Onboard Printer, Features The Excellent User Interface Provides Intuitive and Easy-To-Understand Operability, The Measure-Start and Other Frequently Used Buttons are Strengthened to Resist Wear And The Detrimental Effects of Workshop Contaminants, Includes Convenient Carrying Case For Protection in The Field, Measuring Range 17.50 mm, Analysis Graph BAC, ADC, Number of Sampling Spans 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, Power Supply Battery and AC Adapter
graingerSKU: , mscSKU: , zoro_no: G0907210, mongo_id: 65bbe5c43aaddbd5a9fe610f

Web Price

$7,101.24 / each

Qty

Product Details

Analysis Graph BAC, ADC

Calibration Functions Saves Last Inputted Nominal Value of Specimen/Average Calibration With Multiple Measurement (Max.12 Times) Is Available

Case Type Carrying Case

Compatible Data Output Cable Mfr. No. 12AAM475

Compatible Wireless Transmitter U-WAVE

Country of Origin (subject to change) Japan

Data Output Connection Type USB, Digimatic, RS232C, Foot

Data Output Type Cable, Wireless

Detector Measuring Force 4 mN

Digital Filter Type Gaussian, 2CR75, PC75

Dimensions - Display Unit 4.29 in x 10.83 in x 7.80 in

Dimensions - Drive Unit 8.90 in x 4.50 in x 0.90 in

Display Functions Color

Display Languages Japanese, English, German, French, Italian, Spanish, Portuguese, Korean, Traditional Chinese, Simplified Chinese, Czech, Polish, Hungarian, Turkish, Swedish, Dutch

Display Screen Size 5.7 in

Display Type LCD

Drive Unit Principle Standard

Features The Excellent User Interface Provides Intuitive and Easy-To-Understand Operability, The Measure-Start and Other Frequently Used Buttons are Strengthened to Resist Wear And The Detrimental Effects of Workshop Contaminants, Includes Convenient Carrying Case For Protection in The Field

For Use With SJ-412

Includes Connecting Cable, Nosepiece For Plane Surface, Nosepiece For Cylinder, Supporting Leg, Calibration Stage, Stylus Pen, Protection Sheet, Printer Paper (5 Pieces, Carrying Case, Roughness Reference Specimen (Ra 119micron in/3micron m), AC Adapter, Power Cord Set (Ul/Csa)

Includes Battery No

Includes Case Yes

Includes Printer No

Maximum Operating Temperature - C 40 Degrees C

Maximum Operating Temperature - F 104 Degrees F

Measuring Condition Standards JIS82, JIS94, JIS01, ISO97, ANSI, VDA, FREE

Measuring Range 17.50 mm

Measuring Range (In.) 0.69 in

Measuring Range (mm) 17.50 mm

Measuring Range Ra 800 micronm

Measuring Range Rz 8 micronm

Memory Storage Capacity Internal Memory: Measurement Condition (10 Sets), Memory Card (Option): 500 Measurement Conditions, 1000 Measuring Data, 10000 Text Data, 500 Statistic Data,500 Image Data, 1 Backup Of Machine Setting, The Last Ten Traces (Trace 10)

Minimum Operating Temperature - C 5 Degrees C

Minimum Operating Temperature - F 40 Degrees F

Number of Parameters Measured 48

Number of Sampling Spans 1, 2, 3, 4, 5, 6, 7, 8, 9, 10

Operating Position Any Position

Operating Temperature Range 40 Degrees F to 104 Degrees F / 5 Degrees C to 40 Degrees C

Package Quantity 1

Parameters Measured Ra, Rc, Ry, Rz, Rq, Rt, Rmax*1, Rp, Rv, R3z, Rsk, Rku, Rc, RPc, Rsm, Rz1max*2, S, HSC, RzJIS*3, Rppi, RÃÂ¿a, RÃÂ¿q, Rlr, Rmr, Rmr(c), RÃÂ¿c, Rk, Rpk, Rvk, Mr1, Mr2, A1, A2, Vo, ÃÂ¿a, ÃÂ¿q, L0, Rpm, tp*4, Htp*4, R, Rx, AR, W, AW, x, Wte, Possible Customize

Power Supply Battery and AC Adapter

Probe Positions 90 degrees

Probe Sensor Type Differential Inductance

Probe Tip Radius 5 um

Profile Resolution 14400 microinch/0.8 microinch (360 micron/0.02 micron), 4000 microinch/0.2 microinch (100 micron/0.006 micron), 1000 microinch/0.08 microinch (25 micron/0.002 micron)

Sampling Length 0.003 in, 0.01 in, 0.03 in, 0.1 in

Sampling Range Arbitrary Length 0.30 mm to 16 mm (0.01 mm Interval)

SPC Output Yes

Tester Series Marsurf Pocket Surf IV
