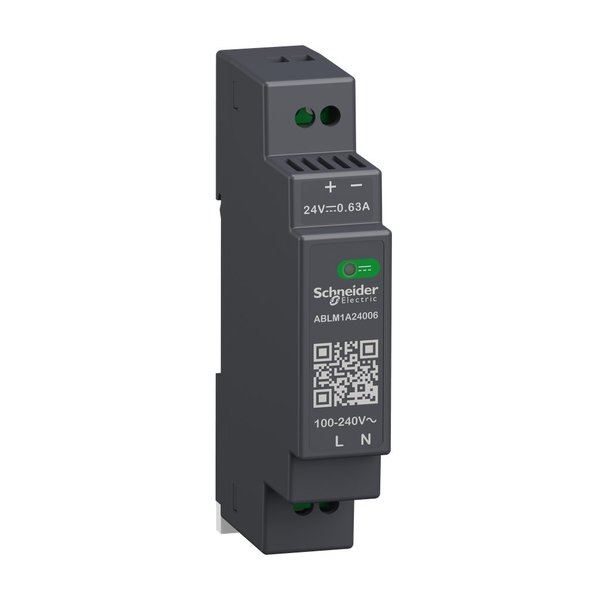

Power Supply 24V 0.6A Modular, 90-264V AC

SKU
Brand Modicon
Categories
Description POWER SUPPLY 24V 0.6A MODULAR, Input Voltage 90 to 264 V AC, Output Voltage 24V DC, Power Rating 15W, Output Amps 0.625, Mounting DIN Rail/Panel, Switching, Case Material Plastic Case, Height 3.58 in, Width 0.71 in, Depth 2.19 in, Hz 50 to 60 Hz, Phase - Electrical Single, IP Rating 20, Hold Up Time Greater Than 10 msec @ 115 V AC, Greater Than 60 msec @ 230 V AC, Status Indicator Green LED
graingerSKU: 61NZ72, mscSKU: , zoro_no: G001866404, mongo_id: 65bbe63d3aaddbd5a90184e7

Web Price

$137.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -13 to 131ÃÂ°F (-25 to 55ÃÂ°C) without current derating mounting position A Less than 6561.68 ft (2000 m); 131 to 158ÃÂ°F (55 to 70ÃÂ°C) with current derating of 2.67% perÃÂ°C mounting position A Less than 6561.68 ft (2000 m)

Amps 0.25 to 0.4 A

Case Material Plastic Case

Connection Screw

Connections - Terminals Screw connection 0.5 to 1.5 mmÃÂ², AWG 20 to AWG 16) without wire end ferrule input/output; Screw connection 0.5 to 1 mmÃÂ², AWG 20 to AWG 18) with wire end ferrule input/output

Country of Origin (subject to change) Multiple

Current Consumption Less than 0.4 A 115 V AC; Less than 0.25 A 230 V AC

Depth 2.19 in

Dielectric Strength 3000 V AC input/output

Efficiency 81% 115 V AC; 81% 230 V AC

Electrical Shock Protection Class Class II without PE connection

Electromagnetic Emission Conducted emissions IEC 61000-6-3; Radiated emissions IEC 61000-6-4

Electromagnetic Immunity Immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2; Immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2; Electromagnetic field immunity test - test level: 15 V/m (80 MHz to 2 GHz) conforming to IEC 61000-4-3; Electromagnetic field immunity test - test level: 5 V/m (2 to 2.7 GHz) conforming to IEC 61000-4-3; Electromagnetic field immunity test - test level: 5 V/m (2.7 to 6 GHz) conforming to IEC 61000-4-3; Immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4; Surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5; Surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5; Immunity to conducted disturbances - test level: 15 V (0.15 to 80 MHz) conforming to IEC 61000-4-6; Immunity to magnetic fields - test level: 30 A/m (50 to 60 Hz) conforming to IEC 61000-4-8; Immunity to voltage dips - test level: 100% (1 cycle) conforming to IEC 61000-4-11; Immunity to voltage dips - test level: 60% (10 cycles) conforming to IEC 61000-4-11; Immunity to voltage dips - test level: 30% (25 cycles) conforming to IEC 61000-4-11; Disturbing field emission conforming to EN 55016-2-3; Limits for harmonic current emissions conforming to IEC 61000-3-2; conforming to EN 55016-1-2; conforming to EN 55016-2-1

Enclosure Material Plastic

Features Automatic Reset, It Can Be Directly Connected To Central Distribution Board, The Product Can Be Directly Mounted On The Panel

Height 3.58 in

Hold Up Time Greater Than 10 msec @ 115 V AC, Greater Than 60 msec @ 230 V AC

Holding Time Greater than 10 ms 115 V AC; Greater than 60 ms 230 V AC

Hz_ 50 to 60 Hz

Input Protection Type Integrated fuse (not interchangeable) 3.15 A; External protection (recommended) 20 A Curve B; External protection (recommended) 20 A Curve C; External protection (recommended) 2 A Curve B; External protection (recommended) 2 A Curve C

Input Voltage 90 to 264 V AC

Inrush Current 15 A 115 V; 30 A 230 V

IP Degree Of Protection IP20

IP Rating 20

KW Rating 15 W

Line And Load Regulation Less than 0.5% network in line; Less than 1% network 0 to 100% load

Line Regulation Less Than 0.5%

Load Regulation Less Than 1%

Maximum Leakage Current 0.25 mA 240 V AC

Meantime Between Failure 3000000 h at 77ÃÂ°F (25ÃÂ°C), full load; 1000000 h at 131ÃÂ°F (55ÃÂ°C), 80% load

Mounting DIN Rail/Panel

Mounting Support Top hat type TH35-15 rail IEC 60715; Top hat type TH35-7.5 rail IEC 60715; Double-profile DIN rail; panel mounting

Network System Compatibility TN; TT; IT

Nominal Input Voltage 100 to 240 V AC single phase; 100 to 240 V AC phase to phase

Operating Altitude Less than 6561.68 ft (2000 m) overvoltage category III; 2000 m to 5000 m overvoltage category II

Operating Temp. Range -25 Degrees to 55 Degrees C

Output Amps 0.625

Output Coupling Serial

Output Protection Type Against overload and short-circuits automatic reset; Against over temperature manual reset; Against overvoltage manual reset

Output Voltage 24V DC

Overvoltage Category II

Package Quantity 1

Phase - Electrical Single

Pollution Degree 2

Power Dissipation in W 3.5 W

Power Factor 0.51 at 115 V AC; 0.40 at 230 V AC

Power Rating 15W

Power Supply Output Current 0.625 A

Power Supply Type Regulated switch mode

Product Certifications CE; CUL Listed; CUL Recognized; RCM; CB Scheme; EAC; KC; NEC class 2

Product Or Component Type Power supply

Protection Overload and Short-Circuits Automatic Reset, Over Temperature Manual Reset , Overvoltage Manual Reset

Residual Ripple Less than 100 mV

Ripple Volts Regulation Less Than 100mV

Service Life 10 year(s)

Shock Resistance 150 m/sÃÂ² 11 ms

Standards CB Scheme, CE, CSA C22.2 No 61010-1, CSA C22.2 No 61010-2-201, CSA C22.2 No 62368-1, CUL Listed, CUL Recognized, EAC, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61010-2-201, EN 62368-1, EN/IEC 61010-1, EN/IEC 61204-3, EN/IEC 62368-1, KC, NEC class 2, RCM, UL 61010-1, UL 61010-2-201, UL 62368-1

Startup With Capacitive Loads 3000 ÃÂµF

Status Indicator Green LED

Status LED 1 LED (Green) output voltage

Style Switching

Supply SELV IEC 60950-1; SELV IEC 60204-1; SELV IEC 60364-4-41

Temp. Range -25 to 55ÃÂ°C (without Current Derating), 55 to 70ÃÂ°C (with Current Derating)

Turn-On Time Less than 2 s

Vibration Resistance 3 mm 2 to 9 Hz)IEC 60721-3-3; 10 m/sÃÂ² 9 to 200 Hz)IEC 60721-3-3

Width 0.71 in
