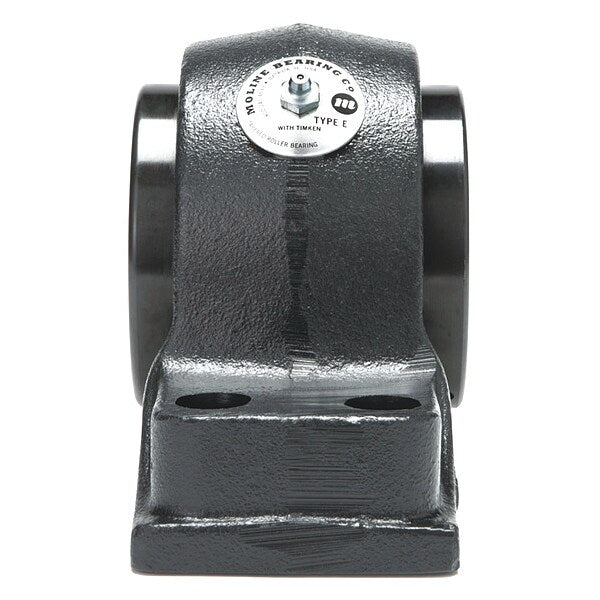

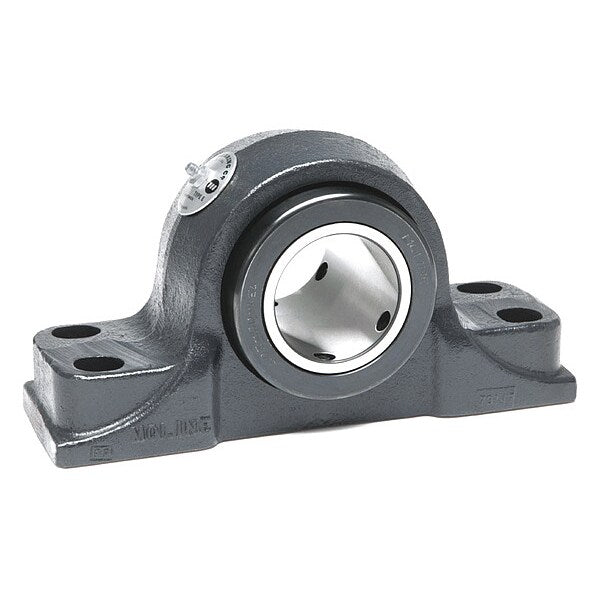

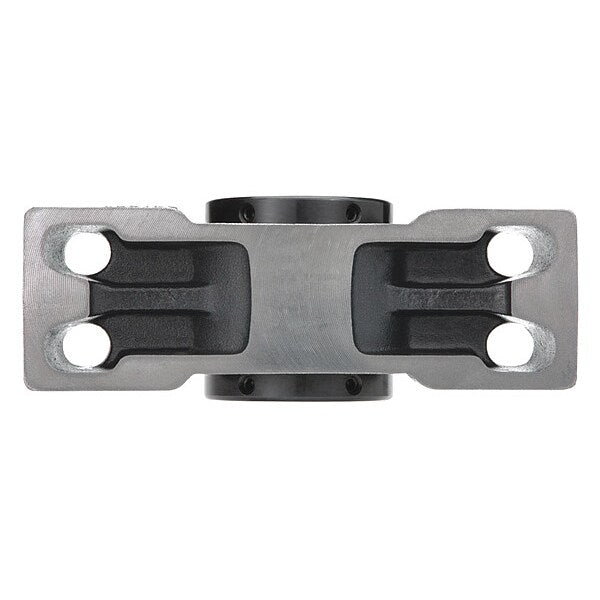

Pillow Block Brg, 4 7/16in Bore, Cast Iron
Pillow Block Brg, 4 7/16in Bore, Cast Iron
Pillow Block Brg, 4 7/16in Bore, Cast Iron

Pillow Block Brg, 4 7/16in Bore, Cast Iron

  • Moline Bearing
  • Pillow Block Bearing, Base Height 2.75 in, Base Width 4.63 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Tapered Roller, Bore Diameter 4 7/16 in, Bore Type Cylindrical, Center Height 4.75 in, Expansion Type Expansion, Housing Material Cast Iron, Included Bearing Timken Type E Tapered Roller, Lubricant Material Lithium Complex Grease, Maximum Speed 1,360 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Length 13.5 in

    graingerSKU: , mscSKU: , zoro_no: G1160602, mongo_id: 65bbe88a9a749db82279a1ec

Web Price
$2,919.99 / each
Qty

Product Details

Aggregate, Conveying, Cranes, Forestry, Mining, Oil, Gas, Power Generation, Screening
2.75 in
4.63 in
Cast Iron
Alloy Steel
Tapered Roller
Timken Lithium Complex Grease
52100
13 1/2 in
3/4 in
4 7/16 in
4 7/16 in
Cylindrical
4.75 in
United States
6 3/4 in
16 5/8 in
4 5/8 in
13 1/2 in
3/4 in
1 3/16 in
2 3/4 in
9 3/8 in
6 1/4 in
4 3/4 in
33,000 lbf
33,000 lb
Expansion
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Built with Timken (TM) Enhanced Dee Tapered Roller Bearings with the Highest Industry Load Ratings, Double-Extended Inner Race, Case Hardened Rollers and Races, Close Fit Oversized Collars Act as Flingers for Additional Protection in Dusty or Damp Environments, Dimensionally Interchangeable with Comparable Type E Units, Moline Split E1000, Moline ME2000 and ME3000, Extended Inner Race has Two Locking Collars with 65 Degrees Set Screw Spacing, Misalignment = .010 in Per Foot of Shaft, Standard V-Guard(TM) Nitrile and Teflon Contact Seal or Balanced Labyrinth Seal, Timken(TM) Lithium Complex Grease Operating Temperature is up to 250 Degrees , High Temperature Grease is Available up to 350 Degrees
Cast Iron
Timken Type E Tapered Roller
Timken Type E Tapered Roller Bearing
Radial, Thrust
Lithium Complex Grease
1,360 RPM
1,360 RPM
250 Degrees F
-40 Degrees F
13.5 in
2.5 in
1 3/16 in
Bolt-Through
3/4 in
4 3/4 in
4
4
9.375 in
16.625 in
6.75 in
1
Contact
Set Screws
188,400 lb
188,400 lbf
Inch
-40 Degrees to 250 Degrees F
