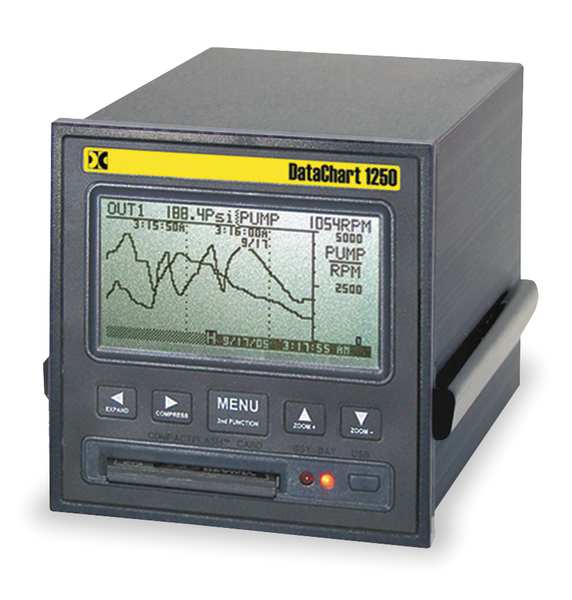

Paperless Recorder, Power 100 To 240 VAC

SKU
Brand Monarch
Categories
Description Paperless Recorder, Voltage Range 0-250mV DC, 0-1.25V DC, 0-2.5V DC, 0-5V DC, 0-12.5V DC, 0-25V DC, Current Range 4-20mADC, 0-20mADC, 10-50mADC, 0-50mADC, Thermocouple Type J, K, T, E, RTD Type 100 Ohm Pt 385, 100 Ohm Pt 392, 2 or 3 wire, Temp. Range -148 Degrees to 2498 Degrees F (-100 Degrees to 1370 Degrees C), Display Mono LCD, 2 Channels, Up to 2 GB Compact Flash (Order Separatly) Memory Size, Power Source 100 To 240 V AC
graingerSKU: 1WAA4, mscSKU: , zoro_no: G2376936, mongo_id: 65bbe5903aaddbd5a9fd048a

Web Price

$1,224.99 / each

Qty

Product Details

Channels 2

Characteristics Two Universal Inputs including Frequency and Pulse. Variable Sample Times. High Storage Capacity, Internal Programming. Two Alarm Outputs included. Mini front accessible USB 2.0 port for data transfer and real time recording control.

Country of Origin (subject to change) United States

Current Range 4-20mADC, 0-20mADC, 10-50mADC, 0-50mADC

Display Mono LCD

Includes Instructions

Manufacturers Warranty Length 1 yr

Memory Size Up to 2 GB Compact Flash (Order Separatly)

Package Quantity 1

Power Source 100 To 240 V AC

RTD Type 100 Ohm Pt 385, 100 Ohm Pt 392, 2 or 3 wire

Temp. Range -148 Degrees to 2498 Degrees F (-100 Degrees to 1370 Degrees C)

Thermocouple Type J, K, T, E

Voltage Range 0-250mV DC, 0-1.25V DC, 0-2.5V DC, 0-5V DC, 0-12.5V DC, 0-25V DC
