Home / 2-1/2" x 1" NOM C Copper Reducing Coupling

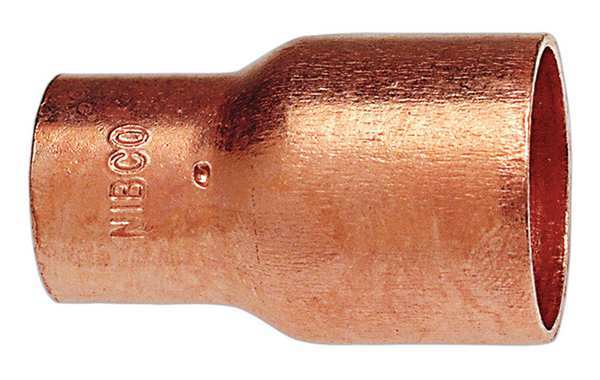

2-1/2" x 1" NOM C Copper Reducing Coupling

SKU
Brand Nibco
Categories
Description Reducing Coupling, Application Air, Gases, Potable Water, Fitting Side A Connection Type Cup, Fitting Side B Connection Type Cup, Fitting Side A Copper Tube Size 2 1/2 in, Fitting Side B Copper Tube Size 1 in, Fitting Material Wrot Copper, Fitting Side A Tube Outer Diameter 2 5/8 in, Fitting Side B Tube Outer Diameter 1 1/8 in, Maximum Operating Pressure 269 psi @ 200 Degrees F, Maximum Operating Temperature 400 Degrees F, Specific Fitting Shape Straight Reducing Coupling
graingerSKU: 39R683, mscSKU: , zoro_no: G5149243, mongo_id: 65bbe8dd22d7a989a991ca47

Web Price

$49.86 / each

Qty

Product Details

Application Air, Gases, Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Coupling

Connection Type Cup x Cup

Copper Tube Size 2 1/2 in x 1 in

Country of Origin (subject to change) United States

End Connection Type Cup

Fitting Connection Type C x C

Fitting Copper Tube Size 1 in, 2 1/2 in

Fitting Material Wrot Copper

Fitting Shape Connector

Fitting Side A Connection Type Cup

Fitting Side A Copper Tube Size 2 1/2 in

Fitting Side A Tube Outer Diameter 2 5/8 in

Fitting Side B Connection Type Cup

Fitting Side B Copper Tube Size 1 in

Fitting Side B Tube Outer Diameter 1 1/8 in

For Tube OD 2 5/8 in x 1 1/8 in

For Tube Outside Diameter 1 1/8 in, 2 5/8 in

Material Grade C12200

Max. Pressure 269 psi@200 Degrees F

Maximum Operating Pressure 269 psi @ 200 Degrees F

Maximum Operating Temperature 400 Degrees F

Minimum Operating Temperature 20 Degrees F

Outside Dia. 2-5/8 x 1-1/8

Package Quantity 1

Pipe Fitting Connection Type C x C

Pipe Fitting Material Wrot Copper

Resistance Properties Dezincification-Resistant

Specific Fitting Shape Reducer Coupling

Specific Pipe Fitting Shape Reducing Coupling

Standards ASTM B75 Alloy C12200; Third-party Certified To NSF/ANSI 61 Annex G; ASME B16.22; MSS SP-104; NFPA 99 Health Care Facilities Gas And Vacuum Systems And The Compressed Gas Association, Pamphlet G4.1 (Medical Gas); MSS SP-109 (5 To 8)

Stop and Shape Straight Reducing Coupling

Temp. Range -20 Degrees to 400 Degrees F

Tube Fitting Material Wrot Copper

Tube Size 2-1/2 x 1
