Home / Speed Reducer, Right Angle, 140TC, 7.5:1

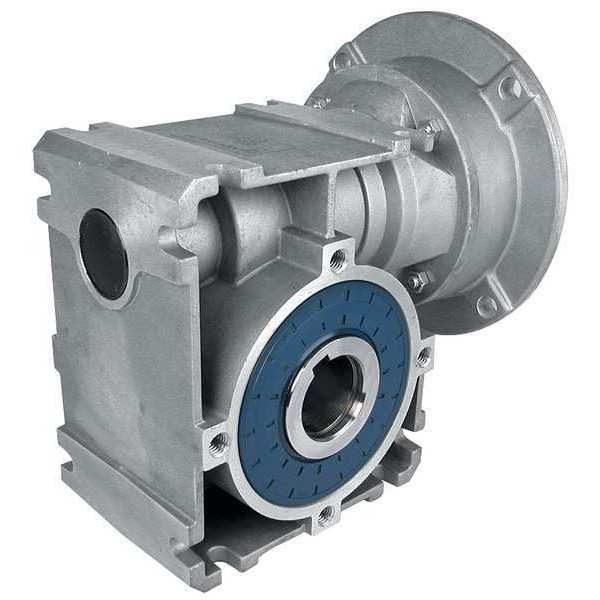

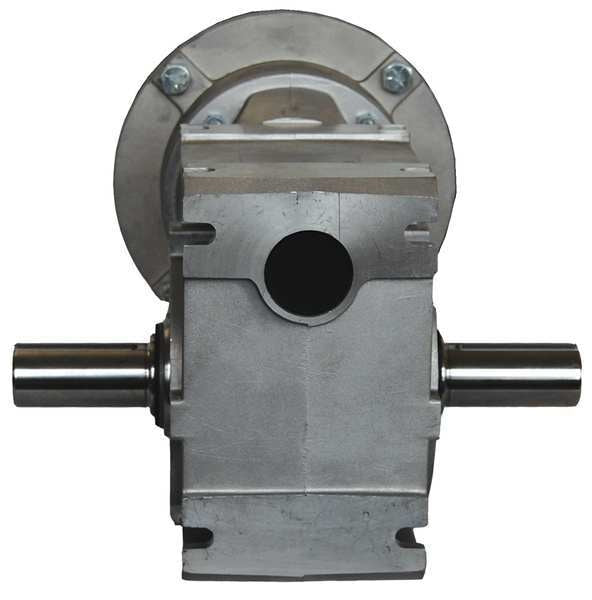

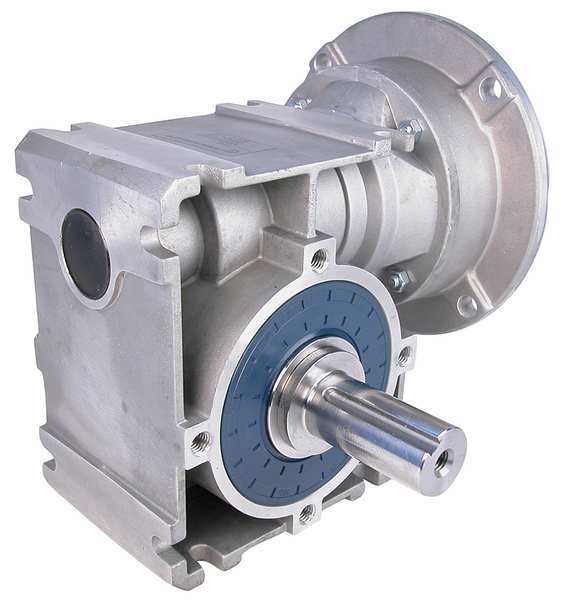

Speed Reducer, Right Angle, 140TC, 7.5:1
Speed Reducer, Right Angle, 140TC, 7.5:1
Speed Reducer, Right Angle, 140TC, 7.5:1
Speed Reducer, Right Angle, 140TC, 7.5:1

Speed Reducer, Right Angle, 140TC, 7.5:1

  • Nord
  • Speed Reducer, Input Connection Type Right Angle, Gear Type Worm, Output Shaft Type Hollow, Maximum Output Speed 233 RPM, Motor Frame Designation 140TC, Worm Center Distance 2.95 in, Base to Center 3.39 in, Gear Ratio 7.5:1, Rotation CW/CCW, Maximum Input Horsepower 8.41 hp, Maximum Output Torque 2071 in-lb, Overhung Load Capacity 2,250 ft-lb, Mounting Orientation Any Angle, Housing Material Aluminum, Shaft Center-to-Center Height 2.95 in, Shaft Material Stainless Steel, Bearing Type Ball

    graingerSKU: 29TM49, mscSKU: , zoro_no: G8111126, mongo_id: 65bbe8149a749db822772e91

Web Price
$1,088.74 / each

Product Details

3.39 in
Ball
Ball
1-15/16
Germany
6.77 in
5.12 in
9.06 in
3.39 in
3.54 in
9.48 in
1 3/8 in
Stainless Steel
Cost Effective, Elimination of Galvanic Corrosion, Highly Cleanable, Non-Porous
Tural
Car Wash, Chemical Wash Down, Dairy, Damp and Wet Environments, Food & Beverage Industry, Marine/Coastal, Pharmaceutical, Water and Waste Treatment
140TC
Fine-Grained Bronze Alloy (Worm Gear), Hardened Alloy Steel (Pinion)
7.5:1
Worm
Aluminum
Tural
C-Face Gasket, Stainless Steel Reducer Hardware
Right Angle
1/8 in
3/16 in
1750 rpm
7/8 in
Food Grade Synthetic
8.37 hp
2,071 in-lb
8.41 hp
1,750 RPM
233 RPM
2071 in-lb
140TC
Universal Foot and Flange-Mount
Any Angle
233 RPM
7.5:1
1
1/4 in
1/2 in
1 3/8 in
1 15/16 in
3 25/64 in
Hollow
389 in-lb
518 in-lb
9.48
2,250 lb
2,250 ft-lb
1
Hardened Steel
SK1SI75
Chemical Resistant, Corrosion Resistant
CW/CCW
Double Lip
2.95 in
Stainless Steel
AISI 1045
Right Angle
Universal
Solid/Hollow
Right Angle
NEMA, iec
2.95 in
Fine-Grained Bronze Alloy
