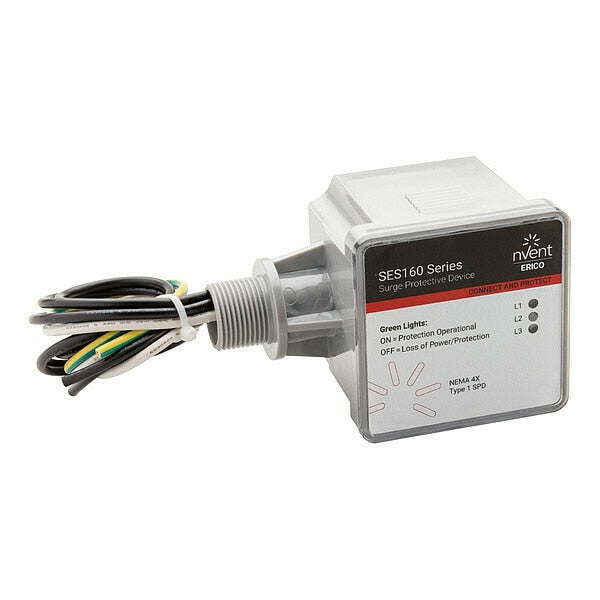

Surge Protection Device, 240V

SKU
Brand Nvent Erico
Categories
Description Surge Protection Device, Nonmetallic, Chase Nipple Size 3/4 in, Amps 160 kA, Depth 2.93 in, Enclosure Material Polycarbonate, Enclosure NEMA Rating 4X
graingerSKU: , mscSKU: , zoro_no: G810191988, mongo_id: 65bbe92e22d7a989a993d148

Web Price

$562.49 / each

Qty

Product Details

Amps 160 kA

Basic Material Nonmetallic

Chase Nipple Size 3/4 in

Country of Origin (subject to change) China

Depth 2.93 in

Enclosure Material Polycarbonate

Enclosure NEMA Rating 4X

Length 4.2 in

Max. Continuing Operating Voltage 350V

Max. Operating Temp. 185 Degrees F

Max. Surge Current per Mode 20 kA

Max. Surge Current per Phase 160 kA

Min. Operating Temp. -40 Degrees F

Modes of Protection L-L, L-N, L-PE, N-PE

Mounting Style Panelboard

Nominal Discharge Current 20 kA

Number of Poles 1

Number of Wires 2 Wires + Ground

Package Quantity 1

Phase Single

Short Circuit Current Rating 200 kA

Standards ANSI/IEEE C62.41.1-2002 Cat A, Cat B, Cat C, ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C, ANSI/IEEE C62.45-2002 Cat A, Cat B, Cat C, CSA C22.2 No. 269.1, UL 1449 Edition 5

Status Indicator Audible Alarm, LED Light

System Connection Parallel

UL SPD Type Type 1; Type 2

Voltage 240V

Voltage Protection Rating 1000 V (L-PE), 1000 V (N-PE), 1200 V (L-L)

Width 3.25 in
