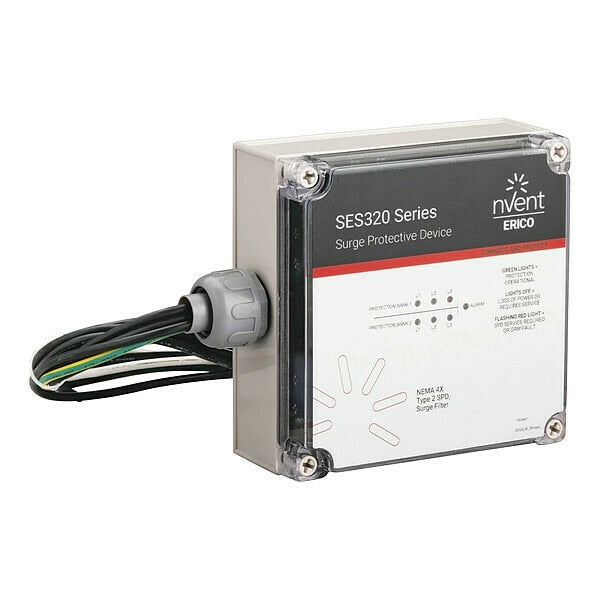

Surge Protection Device, 277/480V

SKU
Brand Nvent Erico
Categories
Description Surge Protection Device, Nonmetallic, Chase Nipple Size 3/4 in, Amps 320 kA, Depth 2.99 in, Enclosure Material Polycarbonate, Enclosure NEMA Rating 4X

Web Price

$2,031.24 / each

Qty

Product Details

Amps 320 kA

Basic Material Nonmetallic

Chase Nipple Size 3/4 in

Country of Origin (subject to change) China

Depth 2.99 in

Enclosure Material Polycarbonate

Enclosure NEMA Rating 4X

Length 6.89 in

Max. Continuing Operating Voltage 350/700V

Max. Operating Temp. 185 Degrees F

Max. Surge Current per Mode 20 kA

Max. Surge Current per Phase 320 kA

Min. Operating Temp. -40 Degrees F

Modes of Protection L-G, L-L, L-N, N-G

Mounting Style Panelboard

Nominal Discharge Current 20 kA

Number of Poles 3

Number of Wires 4 Wires + Ground

Package Quantity 1

Phase Three

Short Circuit Current Rating 200 kA

Standards ANSI/IEEE C62.41.1-2002 Cat A, Cat B, Cat C, ANSI/IEEE C62.41.2-2002 Cat A, Cat B, Cat C, ANSI/IEEE C62.45-2002 Cat A, Cat B, Cat C, CSA C22.2 No. 269.1, UL 1449 Edition 5

Status Indicator Audible Alarm, LED Light

System Connection Parallel

UL SPD Type Type 1; Type 2

Voltage 277/480V

Voltage Protection Rating 1000 V (N-G), 1200 V (L-G), 1200 V (L-N), 2000 V (L-L)

Width 8.38 in
