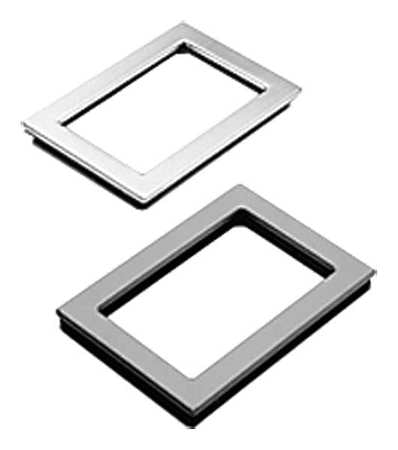

Home / Enclosure Window Kit, 15.5in. Hx10.5in. W

Enclosure Window Kit, 15.5in. Hx10.5in. W

SKU
Brand Nvent Hoffman
Categories
Description Enclosure Window Kit, Frame Height 15.5 in, Frame Width 10 1/2 in, Frame Depth 0.31 in, Cut Out Height 9.69 in, Cut Out Width 14.69 in, Cut Out Depth 0.76 in, Finish Polyster Powder Coated, For Use With NEMA 4, 12 Enclosure, Includes Mounting Hardware, Frame Material Heavy Steel, Color ANSI 61 Gray, Description/Special Features Heavy Gauge Steel with 0.25 in Acrylic Window
graingerSKU: 32FF95, mscSKU: , zoro_no: G8752861, mongo_id: 65bbe92322d7a989a99380d9

Web Price

$471.24 / each

Product Details

Accessory Type Window Kits

Color ANSI 61 Gray

Color Code ANSI 61

Country of Origin (subject to change) United States

Cut Out Depth 0.76 in

Cut Out Height 9.69 in

Cut Out Width 14.69 in

Cutout Size 14.69 x 9.69 in / 373 x 246 mm

Cutout Size (G x H) (inch) 14.69 x 9.69

Cutout Size (G x H) (millimetre) 373 x 246

Description/Special Features Heavy Gauge Steel with 0.25 in Acrylic Window

Finish Polyster Powder Coated

For Use With NEMA 4, 12 Enclosure

Frame Depth 0.31 in

Frame Height 15.5 in

Frame Material Heavy Steel

Frame Width 10 1/2 in

Height 2.80 inch

Includes MOUNTING HARDWARE

IP Rating IP66

Length 18.60 inch

Material Mild Steel

Modification Services Yes

Package Quantity 1

Size 15.50x10.50x.31 in

Standards UL 508A Component Recognized; Type 4, 4X (stainless steel and; non-metallic versions only), 3R, 12; File No. E61997.; UL 746C Component Recognized (non-metallic version only).; CSA Type 4, 4X (stainless steel and non-metallic versions only), 3R, 12; File No. 42186; NEMA/EEMAC 4, 4X (stainless steel and non-metallic versions only), 3R, 12; IEC 60529, IP66

Thickness 14 ga / 1.9 mm

Thickness (T) (gauge) 14

Thickness (T) (millimetre) 1.9

Type Number Type 4

Width 14.00 inch

Window Size 330 x 203 mm / 13.00 x 8.00 in

Window Size (M x N) (inch) 13.00 x 8.00

Window Size (M x N) (millimetre) 330 x 203
